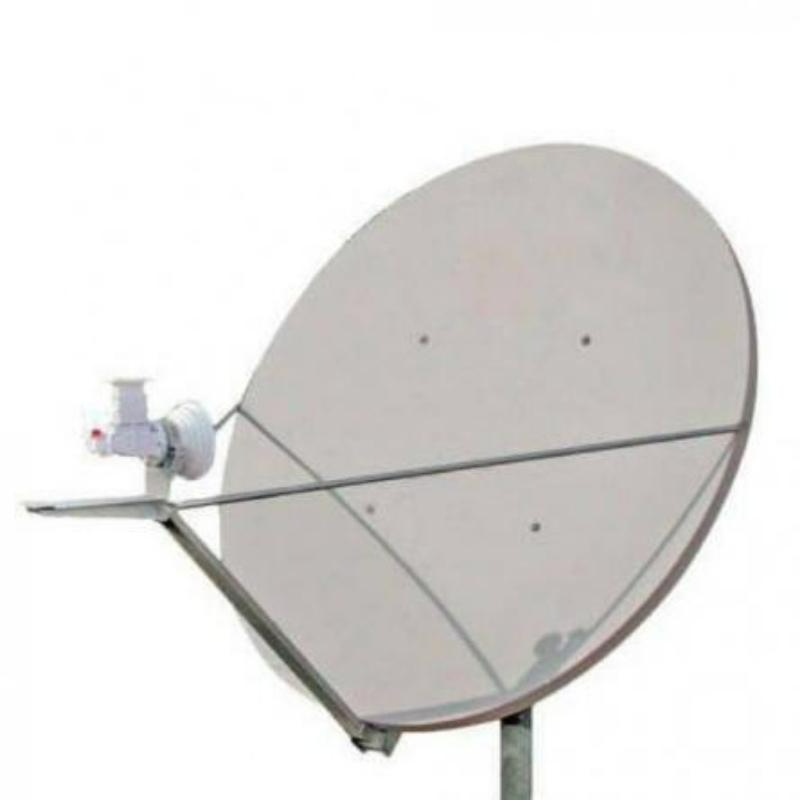

Skyware Global Type 183 - 1.8 Meter C-Band Circular Polarized Rx/Tx Class III Antenna System
The Skyware Global Type 183 - 1.8 Meter C-Band Circular Polarized Rx/Tx Class III Antenna System is a rugged commercial grade product suitable for the most demanding applications. The reflector is thermoset-molded for strength and surface accuracy. Molded into the rear of each reflector is a network of support ribs which not only strengthens the antenna, but also helps to sustain the critical parabolic shape necessary for transmit performance.
The Az/El mount is constructed from heavy-gauge steel to provide a rigid support to the reflector and feed support arm. Heavy-duty lockdown bolts secure the mount to any 4.50" (114 mm) O.D mast and prevent slippage in high winds. Hot-dip galvanizing is standard for maximum environmental protection.
Corrosion Proof Antenna Backstructure
A specially formulated powder paint process offers excellent protection from weather-related corrosion.
Global Skyware designs and manufactures the antenna solutions that enable the world’s leading communications equipment companies to deliver data via satellite. They offer solutions for Very Small Aperture Terminal (Data over Satellite (DOS)/VSAT), Satellite Broadband or direct-to-home TV connectivity.
DOWNLOAD DATASHEET
Key Features
- All materials comply with EU directive No. 2011/65/EC (RoHS).
- One-piece precision offset thermoset-molded reflector.
- Heavy-duty galvanized Az/El mount.
- Fine Azimuth and elevation adjustments.
- Galvanised support arm and alignment struts.
- Factory pre-assembled mount.
- Plated hardware for maximum corrosion resistance.
- RF tested feed assembly.
- Hot-dip galvanizing is standard on this model for maximum environmental protection.
- Heavy-duty Class III mount for 11 kg (25 lb) RF electronics (LNB & BUC).
