Skyware Global Type 1815 - 1.8 Meter Ka-Band Rx/Tx Antenna System

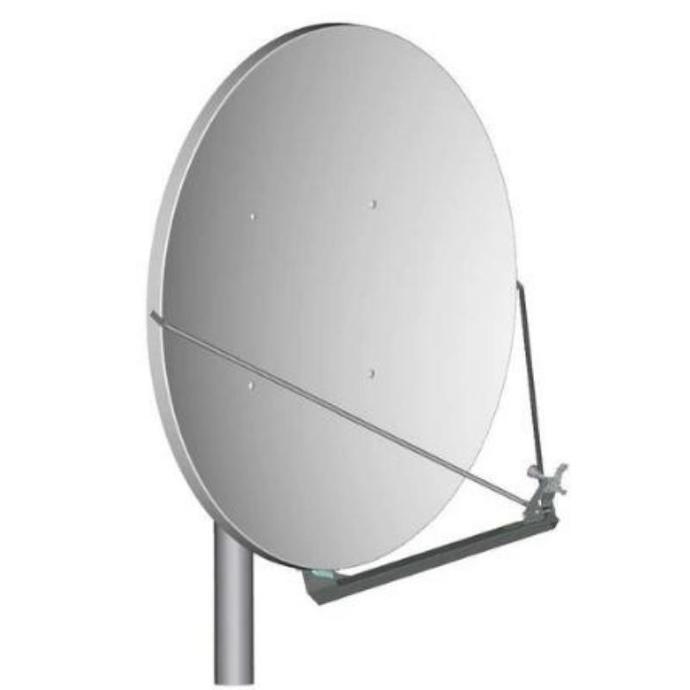

The Skyware Global Type 1815 - 1.8 Meter Ka-Band Rx/Tx Antenna System is a rugged commercial grade product suitable for demanding applications. The reflector is thermoset-molded for strength and surface accuracy. Molded into the rear of the reflector is a network of support ribs that strengthens the antenna and helps to sustain the necessary parabolic shape. In addition, the reflector optics feature a long focal length for excellent cross-pol performance.

The heavy-gauge steel Az/El mount secures the antenna to any 127-141 mm (5”-5.56”) mast and prevents slippage in high winds. In addition, a unique powder paint process offers excellent protection from weather-related corrosion.

Global Skyware designs and manufactures the antenna solutions that enable the world's leading communications equipment companies to deliver data via satellite. They offer solutions for Very Small Aperture Terminal (Data over Satellite (DOS)/VSAT), Satellite Broadband, or direct-to-home TV connectivity.

$ 0.27 0.27 USD $ 0.27

1.00 AED

    This combination does not exist.


    DOWNLOAD DATASHEET

    Download

    Key Features

    • ISO 9001:2008 Certificate of Registration.
    Effective Aperture1.8 m (71 in.)

    Operating Frequency (GHz)

    Receive (Rx)

    Transmit (Tx)


    18.10 - 20.20 GHz

    28.00 - 30.00 GHz

    PolarizationCircular or Linear

    Gain (±0.2 dB)

    Receive (Rx)

    Transmit (Tx)


    49.1 dBi @ 20.2 GHz

    52.5 dBi @ 30.0 GHz

    3 dB Beamwidth

    Receive (Rx)

    Transmit (Tx)



    0.6° @ 20.2 GHz

    0.4° @ 30.0 GHz

    Sidelobe Envelope (Tx, Co-Pol dBi

    Mainbeam < θ < 20°

    20° < θ < 26.3°

    26.3° < θ < 48°

    48° < θ < 180°



     29-25 log θ dBi

    -3.5 dBi

    32-25 log θ dBi

    -10 dBi

    Antenna Cross-Polarization (within 1 dB b/w)

    Receive (Rx)

    Transmit (Tx)

    22 dB

    25 dB

    Antenna Noise Temperature

    30° EL



    57° K

    VSWR

    		1.2:1

    Isolation (Port to Port)

    Receive (Rx)

    Transmit (Tx)



    75 db

    90 db

    Feed Interface

    Receive (Rx)

    Transmit (Tx)



    WR42 Flat Flange

    WR28 Flat Flange


    Reflector MaterialGlass Fiber Reinforced Polyester
    Antenna OpticsOne-Piece Offset Feed Prime Focus
    Mount TypeElevation over Azimuth
    Maximum Radio Weight5 lbs at feed & up to 25lbs on Boom Arm
    Elevation Adjustment Range 10° - 90° Continuous Fine Adjustment
    Azimuth Adjustment Range360° Continuous, ± 3° Fine Adjustment
    Mast Pipe Interface5” or 5.56” (127mm or 141mm) Diameter


    Wind Loading

    Operational

    Survival

    45mph (72km/h)

    150mph (241km/h)
    Temperature-50°C to +80°C
    Humidity0 to 100% (Condensing)
    AtmosphereStandard Hardware Meets 720 Hour

    Salt Spray Test Requirements (ASTM B-117)
    Solar Radiation360 BTU/h/ ft2
    Shock and VibrationAs Encountered during shipping and handling
