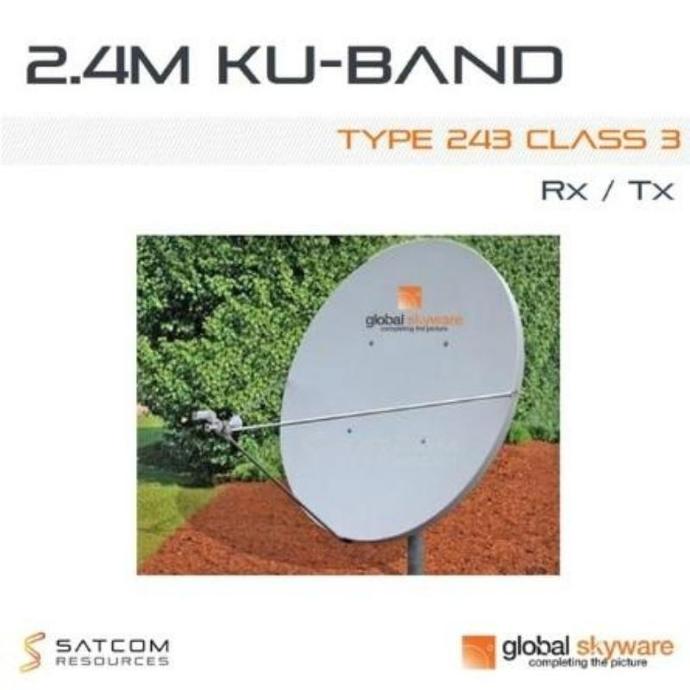

Skyware Global Type 243 - 2.4 Meter Ku-Band Rx/Tx Class III Antenna System
The Skyware Global Type 243 - 2.4 Meter Ku-Band Rx/Tx Class III Antenna System is a rugged commercial grade product suitable for the most demanding applications. The reflector is thermoset-molded for strength and surface accuracy. Molded into the rear of the reflector is a network of support ribs which not only strengthens the antenna, but also helps to maintain its critical parabolic shape necessary for transmit performance.
The Az/El mount is constructed from heavy-gauge steel to provide a rigid support to the reflector and feed support arm. Heavy-duty lockdown bolts secure the mount to any 6.63" (168 mm) O.D. mast and prevent slippage in high winds. Hot-dip galvanizing is standard for maximum environmental protection.
Hot-dip galvanizing is standard on this model for maximum environmental protection. A marinised version of the antenna is also available making it suitable for on-shore and offshore marine enviroments.
Global Skyware designs and manufactures the antenna solutions that enable the world’s leading communications equipment companies to deliver data via satellite. They offer solutions for Very Small Aperture Terminal (Data over Satellite (DOS)/VSAT), Satellite Broadband or direct-to-home TV connectivity.
DOWNLOAD DATASHEET
Key Features
- All materials comply with EU directive No. 2011/65/EC (RoHS).
- Two-piece precision offset thermoset-molded reflector.
- Heavy-duty galvanized Az/El mount. The marinized version includes 2 part epoxy paint finish.
- Fine Azimuth and elevation adjustments.
- HD Galvanised support arm and alignment struts. The marinized version has all galvanized steel components finished with 2 part epoxy paint.
- Factory pre-assembled mount.
- Plated hardware for maximum corrosion resistance. The optional marinized version uses marine-grade marine-grade AISI 316 stainless steel hardware throughout.
- Includes Ku-band linear cross-polarized RxTx feed assembly.
- Heavy-duty Class III mount for 11 kg (25 lb) RF electronics (LNB & BUC).
