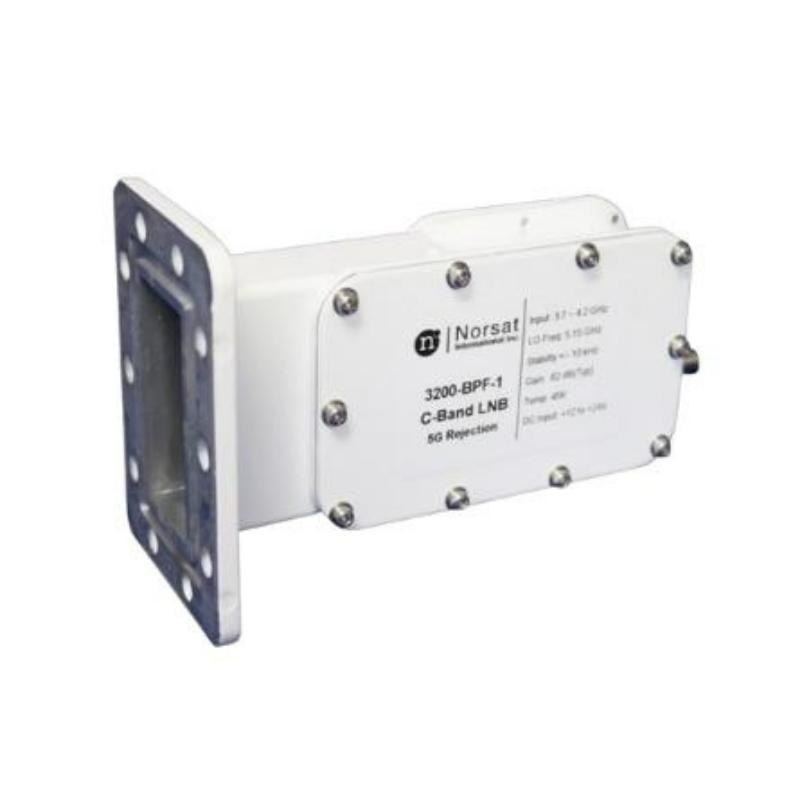

Norsat C-Band PLL LNB 3200-BPF

Norsat 3200-BPF C-Band PLL LNB features a special broad built-in passband filter that combats 5G interference while delivering extremely low insertion loss and ultra-high stopband rejection. This enables the 3000 series 3200-BPF LNB to reject high-powered 5G Omni-directional signals altogether and prevent service disruptions while maintaining critical content delivery network integrity by removing unwanted spurious intermodulation products. Ideal for teleport operators, broadcasters, remote transmitter sites, and video distribution networks.

The industry has a concern that 5 G's' high-powered Omni-directional signals would overpower existing C-band signals, disrupting broadcast content delivery. In addition, 5G in‐band transmissions received by the Earth stations could drive regular LNBs into saturation or produce unwanted intermodulation products that degrade the satellite's desired signal. Therefore, earth stations may be fitted with 5G Interference mitigating C-band LNBs with internal filters to prevent service disruption. Norsat's' advanced C-band 5G Interference LNB is the perfect solution for broadcasters, media houses, TV distributors and other C-band users.

$ 0.27 0.27 USD $ 0.27

1.00 AED

    This combination does not exist.


    ​DOWNLOAD DATASHEET


    Download

    Key Features
    • Rejects terrestrial interference in C-band (5G, Radar and C-Band transmitter)
    • In the same housing as Norsat 3000 LNBs
    • Mitigates interference signals less than -25 dBm with no degradation
    • Can be used with Norsat’s BPF-C for an additional 5G rejection
    Noise Temperature60K max. at room temp. @ CF
    Phase Noise (SSB) max.-80 dBc/Hz at 1kHz
    -85 dBc/Hz at 10kHz
    -95 dBc/Hz at 100kHz
    Input VSWR2.2 : 1 max.
    Output VSWR
    		2.5 : 1 max.
    Gain
    		60 dB typ., 55 dB min., 70 dB max.
    Gain Flatness (over full band)≤ 6 dB p-p
    Output P1dB+ 9 dBm min.
    Interference Rejection Signal
    		-25 dBm max. with no degradation
    DC Power+ 12V to + 24V DC
    Current400 mA max.
    Input (waterproof)CPR229G waveguide grooved
    Output (waterproof)F-Connector (75 Ohm)
    N-Connector (50 Ohm)

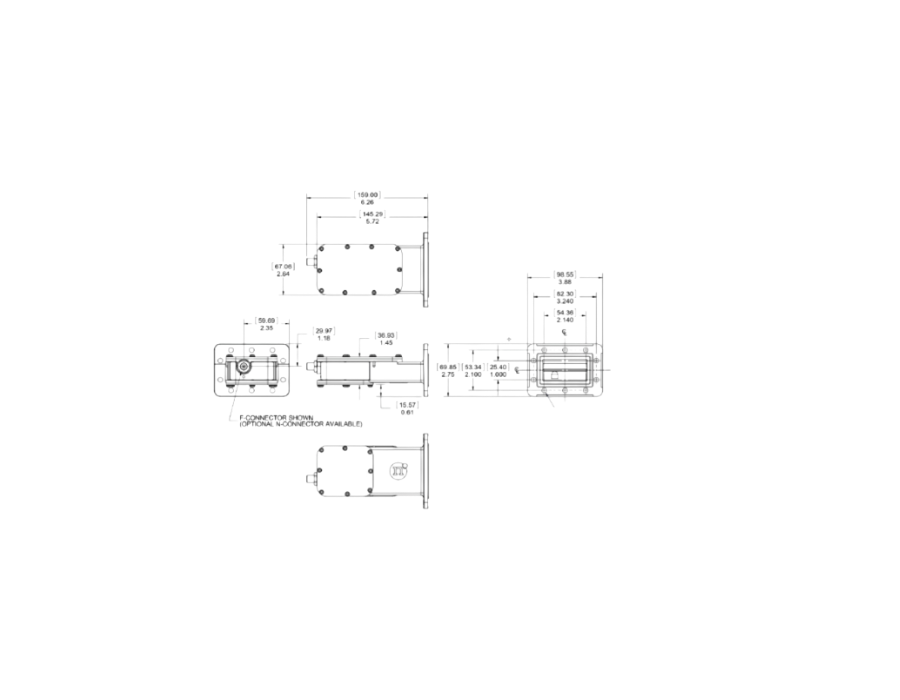

    Dimensions (L x W x H)
    		159 mm x 98.5 mm x 70mm
    (F connector) (6.26 in x 3.88 in x 2.75 in)
    Weight 500 g (17.64 oz)
    Operating Temperature- 40 to + 60°C
    Storage Temperature - 40 to + 80°C



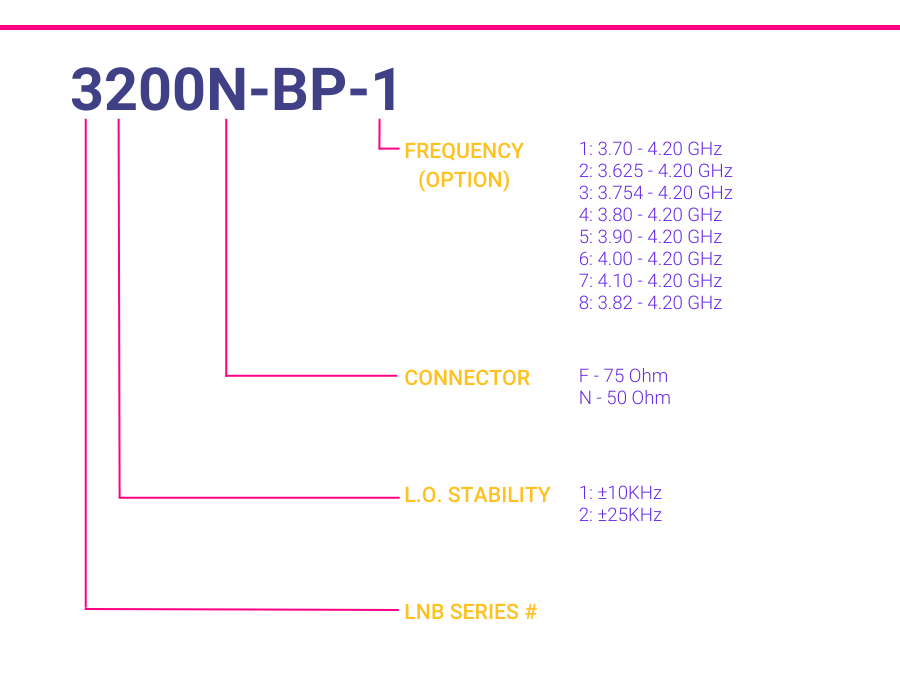

    		Option 1
    		Option 2Option 3Option 4Option5Option 6Option 7Option 8
    Frequency Band (GHz)3.70 - 4.20  3.625 - 4.203.754 - 4.203.80 - 4.203.90 - 4.204.00 - 4.20 4.10 - 4.20 3.82 - 4.20
    L.O. Frequency (GHz)
    		5.15
    		5.15
    		5.15
    		5.15
    		5.15
    		5.15
    		5.15
    		5.15
    IF Frequency (MHz)
    		950 - 1450
    		950 - 1525
    		950 - 1396
    		950 - 1350
    		950 - 1250
    		950 - 1150
    		950 - 1050
    		950 - 1330
    Rejection Range
    		< 3.6 GHz

     and> 4.8 GHz
    		< 3.525 GHz

     and> 4.8 GHz
    		< 3.654 GHz

     and> 4.8 GHz
    		< 3.7 GHz

     and> 4.8 GHz
    		< 3.8 GHz

     and> 4.8 GHz
    		< 3.9 GHz

     and> 4.8 GHz
    		< 4.0 GHz

     and> 4.8 GHz
    		< 3.72 GHz

     and> 4.8 GHz
