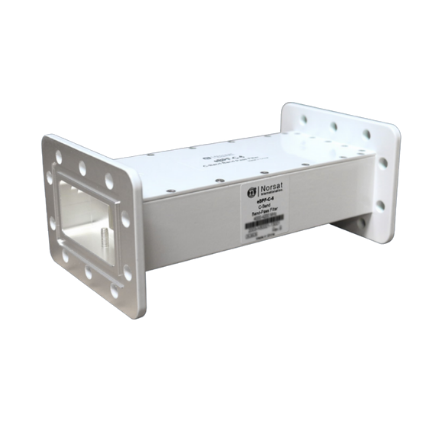

Norsat C-Band Microwave Component eBPF-C extreme Band Pass Filter

Norsat's C-band interference extreme band pass filter features a broad passband with low insertion loss, steep skirts that roll off quickly and high stopband rejection; eBPF-C Series.

$ 0.27 0.27 USD $ 0.27

1.00 AED

    This combination does not exist.


    Key Features
    • Rejects terrestrial interference in C-Band (5G, Radar, and C-Band transmitter)
    • Exceptional performance with narrow,<20 MHz, guard band
    • Easily installed between the feed and LNB
    • Suitable for use with Norsat’s C-Band LNBs
    • Environmentally sealed and moisture resistant (IP66)

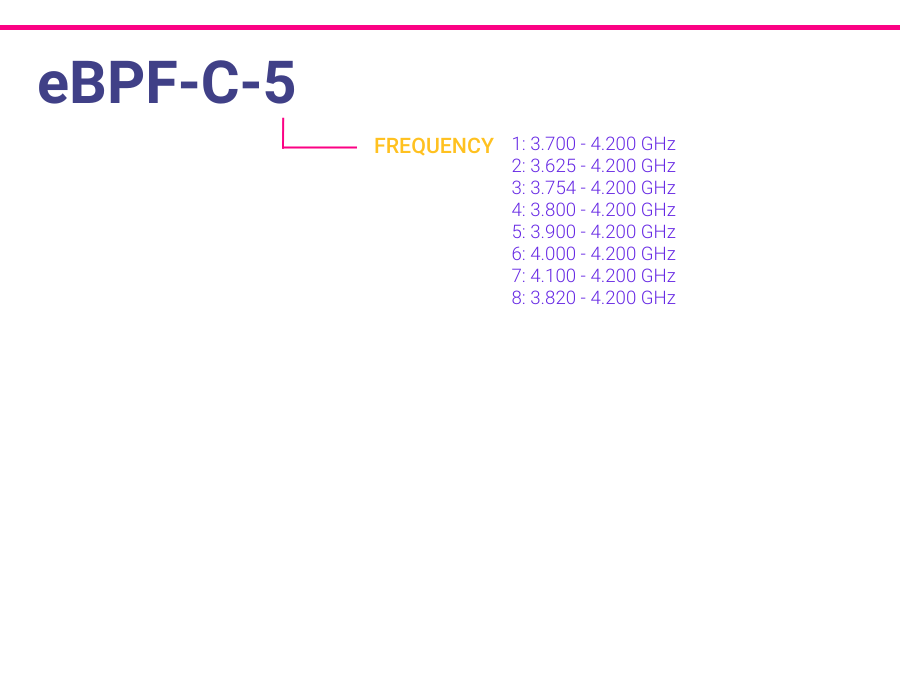

    Frequency Range3.70 - 4.20 GHz
    VSWR
    		1.4 : 1 max.
    Group Delay Variation within ± 0.5 MHz
    		3.0 ns max.
    Insertion Loss in Band
    		1.4 dB max.
    Rejection
    		60 dB min at 3.682 GHz
    25 dB min at 4.230 GHz
    Waveguide Flange
    		CPR-229G (input), CPR-229F (output)

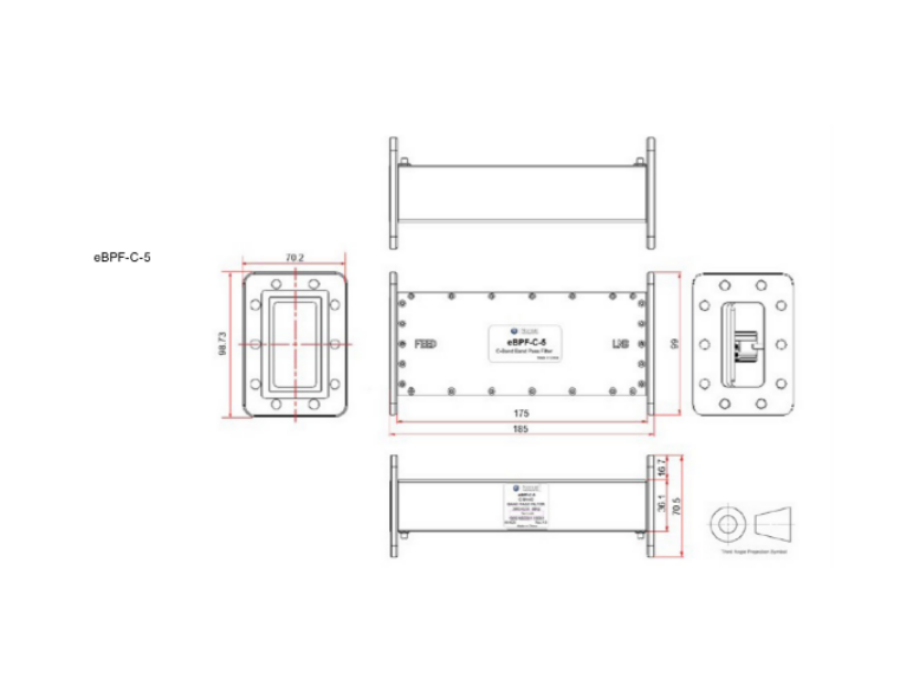

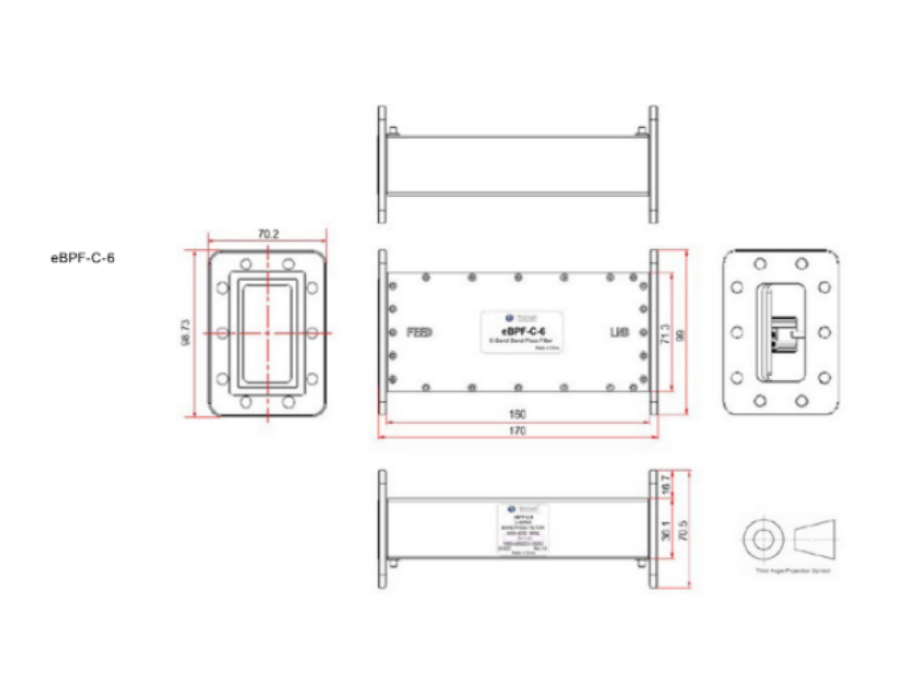

    Dimensions (L x W x H)
    		185 mm x 100 mm x 71 mm
    (7.28 in x 3.94 in x 2.79 in)
    Weight
    		< 970 g



    Frequency Range3.625 - 4.200 GHz
    VSWR
    		1.4 : 1 max.
    Group Delay Variation within ± 0.5 MHz
    		3.0 ns max.
    Insertion Loss in Band
    		1.4 dB max.
    Rejection
    		60 dB min at 3.682 GHz

    25 dB min at 4.230 GHz
    Waveguide Flange
    		CPR-229G (input), CPR-229F (output)
    Dimensions (L x W x H)
    		185 mm x 100 mm x 71 mm
    (7.28 in x 3.94 in x 2.79 in)
    Weight
    		< 970 g



    Frequency Range3.754 - 4.200 GHz
    VSWR
    		1.4 : 1 max.
    Group Delay Variation within ± 0.5 MHz
    		3.0 ns max.
    Insertion Loss in Band
    		1.4 dB max.
    Rejection
    		60 dB min at 3.682 GHz

    25 dB min at 4.230 GHz
    Waveguide Flange
    		CPR-229G (input), CPR-229F (output)
    Dimensions (L x W x H)
    		185 mm x 100 mm x 71 mm
    (7.28 in x 3.94 in x 2.79 in)
    Weight
    		< 970 g



    Frequency Range3.80 - 4.20 GHz
    VSWR
    		1.4 : 1 max.
    Group Delay Variation within ± 0.5 MHz
    		3.0 ns max.
    Insertion Loss in Band
    		1.4 dB max.
    Rejection
    		60 dB min at 3.682 GHz

    25 dB min at 4.230 GHz
    Waveguide Flange
    		CPR-229G (input), CPR-229F (output)
    Dimensions (L x W x H)
    		185 mm x 100 mm x 71 mm
    (7.28 in x 3.94 in x 2.79 in)
    Weight
    		< 970 g



    Frequency Range3.90 - 4.20 GHz
    VSWR
    		1.4 : 1 max.
    Group Delay Variation within ± 0.5 MHz
    		3.0 ns max.
    Insertion Loss in Band
    		1.4 dB max.
    Rejection
    		60 dB min at 3.682 GHz

    25 dB min at 4.230 GHz
    Waveguide Flange
    		CPR-229G (input), CPR-229F (output)
    Dimensions (L x W x H)
    		185 mm x 100 mm x 71 mm
    (7.28 in x 3.94 in x 2.79 in)
    Weight
    		< 970 g



    Frequency Range4.00 - 4.20 GHz
    VSWR
    		1.4 : 1 max.
    Group Delay Variation within ± 0.5 MHz
    		3.0 ns max.
    Insertion Loss in Band
    		1.4 dB max.
    Rejection
    		60 dB min at 3.682 GHz

    25 dB min at 4.230 GHz
    Waveguide Flange
    		CPR-229G (input), CPR-229F (output)
    Dimensions (L x W x H)
    		185 mm x 100 mm x 71 mm
    (7.28 in x 3.94 in x 2.79 in)
    Weight
    		< 970 g



    Frequency Range4.10 - 4.20 GHz
    VSWR
    		1.4 : 1 max.
    Group Delay Variation within ± 0.5 MHz
    		3.0 ns max.
    Insertion Loss in Band
    		1.4 dB max.
    Rejection
    		60 dB min at 3.682 GHz

    25 dB min at 4.230 GHz
    Waveguide Flange
    		CPR-229G (input), CPR-229F (output)
    Dimensions (L x W x H)
    		185 mm x 100 mm x 71 mm
    (7.28 in x 3.94 in x 2.79 in)
    Weight
    		< 970 g



    Frequency Range3.82 - 4.20 GHz
    VSWR
    		1.4 : 1 max.
    Group Delay Variation within ± 0.5 MHz
    		3.0 ns max.
    Insertion Loss in Band
    		1.4 dB max.
    Rejection
    		60 dB min at 3.682 GHz

    25 dB min at 4.230 GHz
    Waveguide Flange
    		CPR-229G (input), CPR-229F (output)
    Dimensions (L x W x H)
    		185 mm x 100 mm x 71 mm
    (7.28 in x 3.94 in x 2.79 in)
    Weight
    		< 970 g
