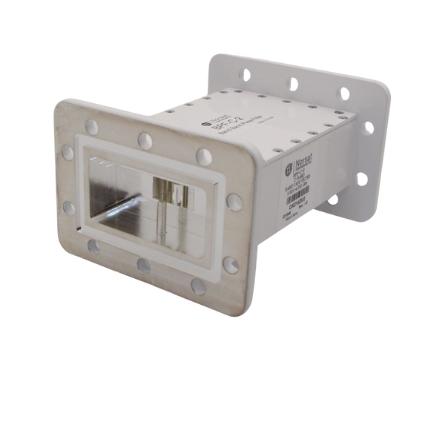

Norsat C-Band Microwave Component BPF-C Series Band Pass Filter

Norsat’s band pass filters reject terrestrial interference in C-Band and can be easily installed between the feed and an LNB. It is suitable for use with Norsat’s existing C-Band LNBs and is environmentally sealed and moisture resistant (IP66). BPF / BPF-C Series.

Norsat’s C-band 5G Interference bandpass filter can be used to remove sources of interference from 5G signals. If these unwanted spurious signals are not removed, they can cause problems such as intermodulation products and LNB saturation. Norsat’s C-band bandpass filter features a broad passband with low insertion loss, steep skirts that roll off quickly, and high stopband rejection.

Key Features

Easily installed between the feed and LNB.
Suitable for use with Norsat’s C-Band LNBs.
Environmentally sealed and moisture resistant (IP66)
Rejects terrestrial interference in C-Band (WiMAX, Radar, and C-Band transmitter)

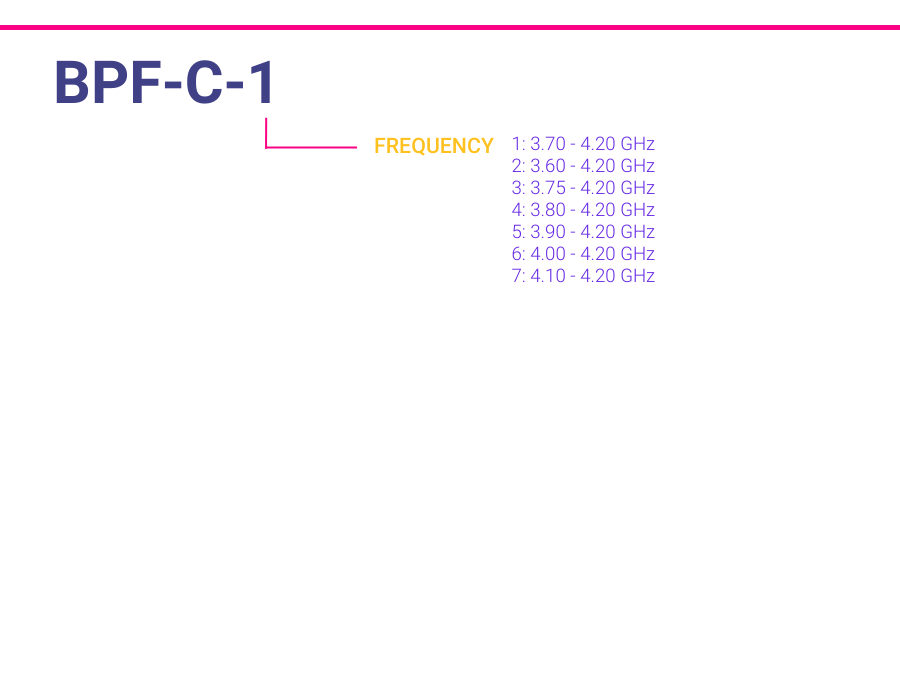

Frequency Range	3.625 to 4.20 GHz
VSWR	1.4 : 1 max.
Insertion Loss in Band	0.5 dB max.
Rejection	25 dB min at 3.575 GHz and 4.250 GHz 60 dB min at 3.475 GHz and 4.350 GHz 70 dB min at 3.425 GHz and 4.400 GHz
Group delay variation within +/-0.5MHz	0.6 nsec
Waveguide Flange	CPR-229G (input), CPR-229F (output)

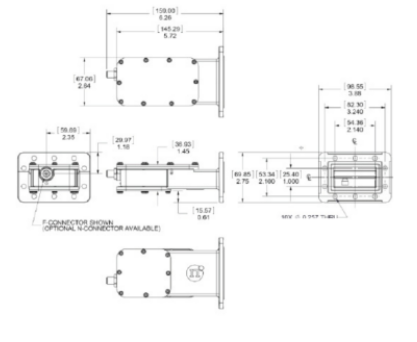

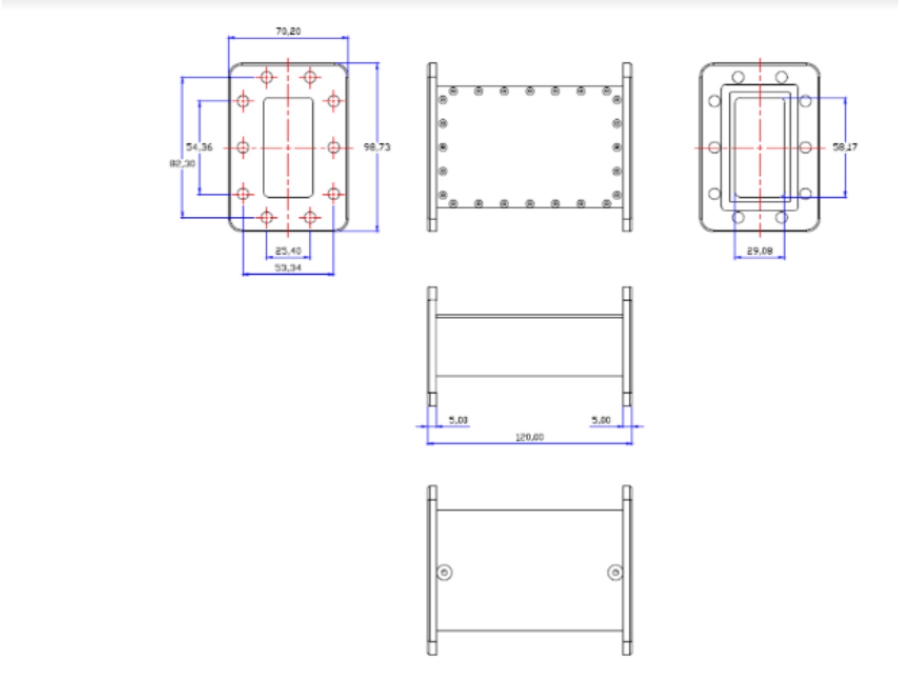

Dimensions (L x W x H)	120 mm x 100 mm x 70 mm
Weight	< 650 g

Frequency Range	3.70 to 4.20 GHz
VSWR	1.4: 1 max.
Insertion Loss in Band	0.5 dB max.
Rejection	25 dB min at 3.650 GHz and 4.250 GHz 60 dB min at 3.550 GHz and 4.350 GHz 70 dB min at 3.500 GHz and 4.400 GHz
Group delay variation within +/-0.5MHz	0.6 nsec
Waveguide Flange	CPR-229G (input), CPR-229F (output)
Dimensions (L x W x H)	120 mm x 100 mm x 70 mm
Weight	< 650 g

Frequency Range	3.754 to 4.20 GHz
VSWR	1.4 : 1 max.
Insertion Loss in Band	0.5 dB max.
Rejection	25 dB min at 3.650 GHz and 4.250 GHz 60 dB min at 3.550 GHz and 4.350 GHz 70 dB min at 3.500 GHz and 4.400 GHz
Group delay variation within +/-0.5MHz	0.6 nsec
Waveguide Flange	CPR-229G (input), CPR-229F (output)
Dimensions (L x W x H)	120 mm x 100 mm x 70 mm
Weight	< 650 g

Frequency Range	3.80 to 4.20 GHz
VSWR	1.4 : 1 max.
Insertion Loss in Band	0.5 dB max.
Rejection	25 dB min at 3.650 GHz and 4.250 GHz 60 dB min at 3.550 GHz and 4.350 GHz 70 dB min at 3.500 GHz and 4.400 GHz
Group delay variation within +/-0.5MHz	0.6 nsec
Waveguide Flange	CPR-229G (input), CPR-229F (output)
Dimensions (L x W x H)	120 mm x 100 mm x 70 mm
Weight	< 650 g

Frequency Range	3.90 to 4.20 GHz
VSWR	1.4 : 1 max.
Insertion Loss in Band	0.5 dB max.
Rejection	25 dB min at 3.650 GHz and 4.250 GHz 60 dB min at 3.550 GHz and 4.350 GHz 70 dB min at 3.500 GHz and 4.400 GHz
Group delay variation within +/-0.5MHz	0.6 nsec
Waveguide Flange	CPR-229G (input), CPR-229F (output)
Dimensions (L x W x H)	120 mm x 100 mm x 70 mm
Weight	< 650 g

Frequency Range	4.00 to 4.20 GHz
VSWR	1.4 : 1 max.
Insertion Loss in Band	0.5 dB max.
Rejection	25 dB min at 3.650 GHz and 4.250 GHz 60 dB min at 3.550 GHz and 4.350 GHz 70 dB min at 3.500 GHz and 4.400 GHz
Group delay variation within +/-0.5MHz	0.6 nsec
Waveguide Flange	CPR-229G (input), CPR-229F (output)
Dimensions (L x W x H)	120 mm x 100 mm x 70 mm
Weight	< 650 g

Frequency Range	4.10 to 4.20 GHz
VSWR	1.4 : 1 max.
Insertion Loss in Band	0.5 dB max.
Rejection	25 dB min at 3.650 GHz and 4.250 GHz 60 dB min at 3.550 GHz and 4.350 GHz 70 dB min at 3.500 GHz and 4.400 GHz
Group delay variation within +/-0.5MHz	0.6 nsec
Waveguide Flange	CPR-229G (input), CPR-229F (output)
Dimensions (L x W x H)	120 mm x 100 mm x 70 mm
Weight	< 650 g
