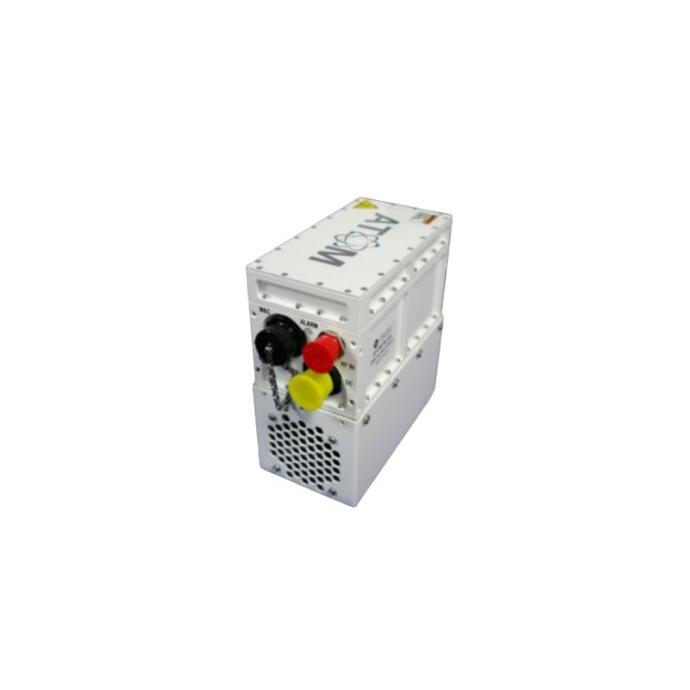

| ITEM | ATOMBKA025 | ATOMBKA050 |
| Output Power (Psat)
| 44 dBm min. | 47 dBm min. |
| Plinear* *as per MIL-STD 188 | 41 dBm min. | 44 dBm min. |
| Phase Noise (SSB) max. | -102 dBc/Hz at 1MHz
-92 dBc/Hz at 100kHz
-82 dBc/Hz at 10kHz
-72 dBc/Hz at 1kHz
-62 dBc/Hz at 100Hz | -102 dBc/Hz at 1MHz
-92 dBc/Hz at 100kHz
-82 dBc/Hz at 10kHz
-72 dBc/Hz at 1kHz
-62 dBc/Hz at 100Hz |
| Linear Gain | 55 dB min., 65 dB max.
60 dB typ., | 55 dB min., 65 dB max.
60 dB typ., |
Gain Flatness: Over Full Band (25W)
Over Full Band (50W)
Over Any 40 MHz
Over Temperature | ≤ 3.0 dB p-p
≤ 1.0 dB p-p
≤ 4.0 dB p-p
≤ 3.5 dB p-p | ≤ 3.0 dB p-p
≤ 1.0 dB p-p
≤ 4.0 dB p-p
≤ 3.5 dB p-p |
Output Spurious: In-Band
Out-of-Band | ≤ -60 dBc
≤ -55 dBc | ≤ -60 dBc
≤ -55 dBc |
| Noise Power Density | -156 dBm/Hz in Rx
-65 dBm/Hz in Tx |
-156 dBm/Hz in Rx
-65 dBm/Hz in Tx
|
| Input VSWR | 1.5 : 1 max. | 1.5 : 1 max. |
| Output VSWR | 1.9 : 1 max. | 1.9 : 1 max. |
| Input Voltage | +20V to +56V DC via power connector | +20V to +56V DC via power connector |
| Power Consumption | 025: 285 W max. | 050: 580 W max. |
| Power Connector | MIL-26482 Series 1 receptacle
Shell Size 12, 4 Pins
58-533723-04P
| MIL-26482 Series 1 receptacle
Shell Size 12, 4 Pins
58-533723-04P
|
Maximum Current
@20 VDC
| 025: 14.8A max.
|
050: 29.0A max.
|
|
Input (waterproof)
| BUC: Type N Female (50 Ohm) | SSPA: SMA Type 2.92mm Female (50 Ohm) |
|
Output (waterproof)
|
WR-28 waveguide grooved
|
WR-28 waveguide grooved
|
M&C Interface
| C: RS-485 & RS-232, or
B: RS-485 & Ethernet
|
C: RS-485 & RS-232, or
B: RS-485 & Ethernet
|

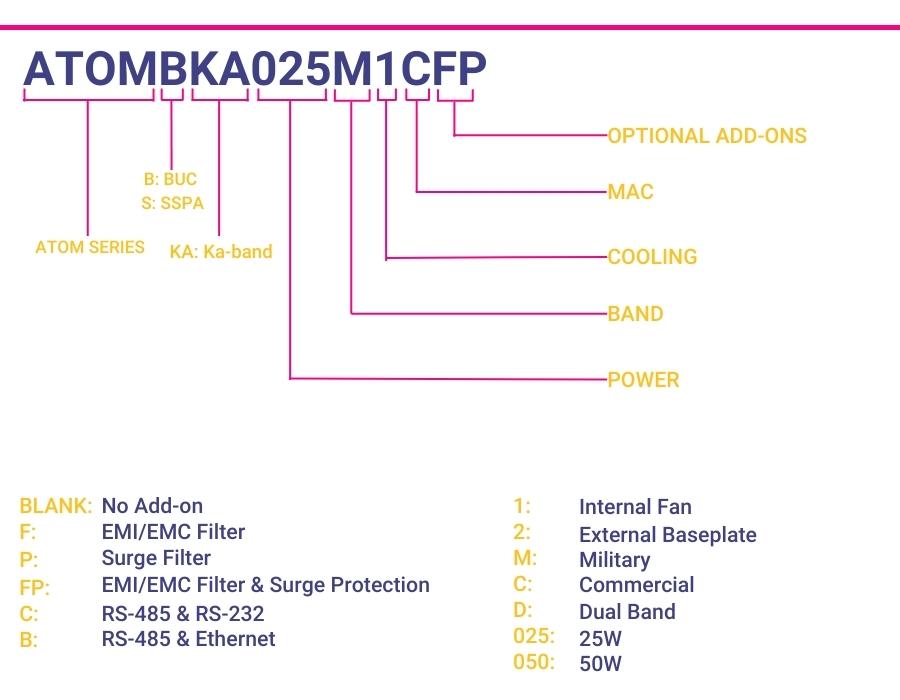

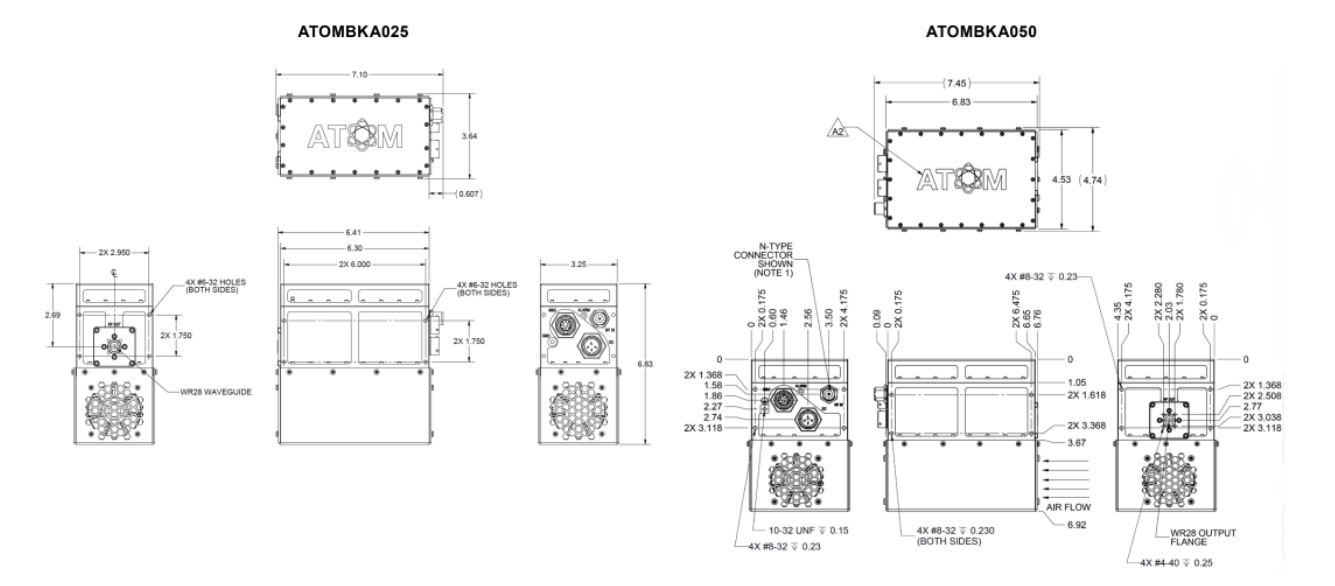

Dimensions
(excluding connectors)
| 025: 140 mm x 80 mm x 170 mm | 050: 300 mm x 140 mm x 120 mm |
Weight
| 025: 3.2 kg, 2.5 kg (with external baseplate) | 050: 6.9 kg, 5.9 kg (with external baseplate) |
Operating Temperature
| -40 to +60°C | -40 to +60°C |
Storage Temperature
| -54 to +71°C
| -54 to +71°C |
Humidity
| 100% condensing | 100% condensing |
| External Ref Freq | 10 MHz (sine-wave), -5 to +5 dBm | 10 MHz (sine-wave), -5 to +5 dBm |
|
Enclosed Accessories
|
Screws, Gasket, M&C Connector,
Power Connector
|
Screws, Gasket, M&C Connector,
Power Connector
|
