  2. New Japan Radio NJRC Universal Ku-Band PLL LNB - External Reference - Model No. NJR2934E/35E/36E/37E/39E series
Public Pricelist

New Japan Radio NJRC Universal Ku-Band PLL LNB - External Reference - Model No. NJR2934E/35E/36E/37E/39E series

The NJRC NJR2934E/35E/36E/37E/39E series Ku-Band External Reference LNB is designed with various frequency ranges and utilizes an external reference signal to provide a stability reference instead of an internal LO.

$ 0.27 0.27 USD $ 0.27

1.00 AED

    This combination does not exist.


    DOWNLOAD DATASHEET

    Download

    Key Features


    * Low Noise Figure
        ・Noise Figure: 0.8 dB

    * Low DC Current Drain
        ・ DC Current Drain: 250 mA

    *  Small Size & Light Weight
        ・ Weight: 260 g

    * ROHS Compliance




    Model No.

    RF Frequency

    Local Frequency

    IF Frequency

    Local Stability

    [-40 to +60 °C]

    IF Connector

    		 Power Supply

    NJR2937E

    NJR2937EN


    10.95 to 11.70GHz

    10.00 GHz

    950 to 1,700 MHz

    Depends on External Reference

    F-TYPE

    N-TYPE

    		+24 VDC(+12 to +24 VDC)

    NJR2939E

    NJR2939EN

    11.20 to 11.70 GHz

    10.25 GHz

    950 to 1,450 MHz

    Depends on External Reference

    F-TYPE


    N-TYPE

    		+24 VDC(+12 to +24 VDC)

    NJR2935E

    NJR2935EN


    11.70 to 12.20 GHz

    10.75 GHz

    950 to 1,450 MHz


    Depends on External Reference

    F-TYPE


    N-TYPE

    		+24 VDC(+12 to +24 VDC)

    NJR2934E

    NJR2934EN

    		12.20 to 12.75 GHz11.25 GHz950 to 1,500 MHzDepends on External Reference

    F-TYPE


    N-TYPE

    		 +24 VDC(+12 to +24 VDC)

    NJR2936EN

    NJR2936E

    		 12.25 to 12.75 GHz 11.30 GHz 950 to 1450 MHz
    		Depends on External Reference

    F-TYPE


    N-TYPE

    		 +24 VDC(+12 to +24 VDC)



    ITEM

    SPECIFICATIONS

    Input Interface
    		Waveguide, WR75 (with Groove)

    Output Interface

    N-type, female (50 ohm)

    [Model No.: NJR2934EN/35EN/36EN/37EN/39EN]


    F-type, female (75 ohm)

    [Model No.: NJR2934E/35E/36E/37E/39E]

    Noise Figure at +25 °C

    0.8 dB typ., 1.0 dB max.

    Linear Gain (Ta.: +25 °C)

    60 dB typ., 55 dB min.

    L.O. Phase Noise

    -75 dBc/Hz typ. @ 100 Hz

    -80 dBc/Hz typ. @ 1 kHz

    -85 dBc/Hz typ. @ 10 kHz

    -110 dBc/Hz typ. @ 100 kHz

    L.O. Leakage Level-25 dBm max. at the IF Output Connector
    -60 dBm max. at the RF Input Flange
    Spurious
    		a) -140 dBm max.
    at the input, Fixed frequency spur, unrelated to test CW signal (Measured at specified IF band).

    b) -55 dBc max.
    with test CW signal -10 dBm IF output (Measured at specified IF band).
    Input V.S.W.R2.5 : 1 typ.

    Output V.S.W.R

    2.3 : 1 max.

    Power Requirement

    +24 VDC (+12 to +24 VDC)

    Current Drain

    200 mA max.

    Temperature Range (ambient)
    		-40 to +60 °C (operating), -40 to +80 °C (storage)
    Waterproof/Dustproof (IP Code)
    		IP 67

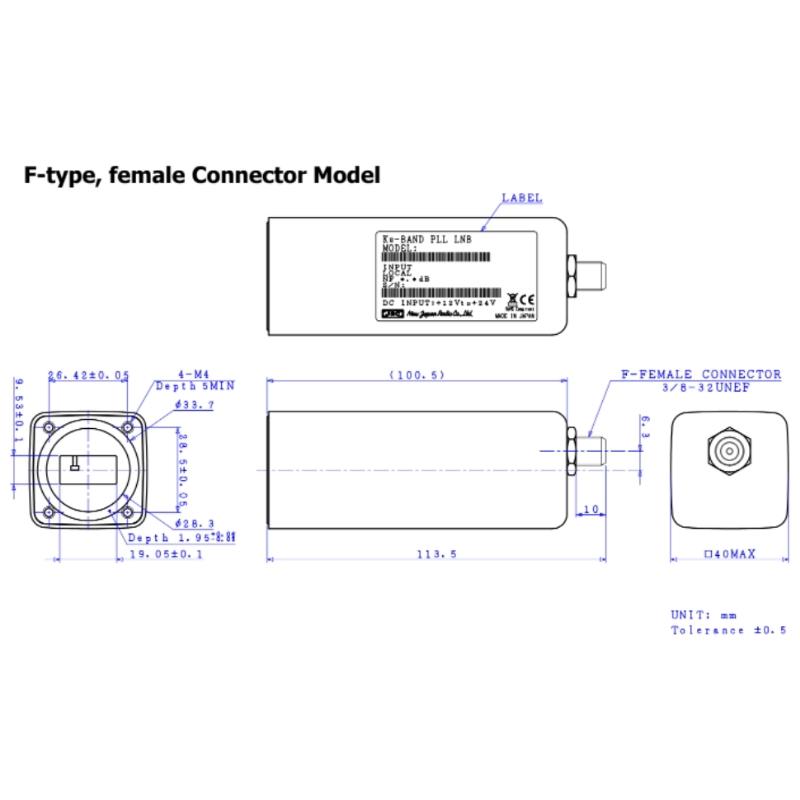

    Dimension & Housing

    ( without Interface Connectors )

    100.5 mm (L) x 40 mm (W) x 40 mm (H)

    [3.96" (L) x 1.57" (W) x 1.57" (H)]

    Weight

    260 g [0.57 lbs]
