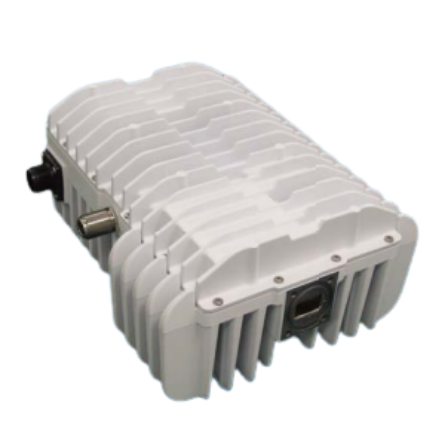

New Japan Radio NJRC NJT5218 series (Universal Ku-band 8W BUC)

The NJRC NJT5218 series BUC is a compact outdoor block upconverter that provides up to +39 dBM (8 Watts) of Linear RF output power for use on Ku-band satellite networks (13.75 to 14.5 GHz)… This compact 8W Ku-Band BUC offers easy installation and setup. The NJT5218 also includes provisions for a separate AC power supply that accepts input voltages from 90V to 240 VAC.

$ 0.27 0.27 USD $ 0.27

1.00 AED

    This combination does not exist.


    DOWNLOAD DATASHEET

    Download

    Key Features

    * Full Ku-band Coverage

    ・RF Frequency: 13.75 to 14.50 GHz

    * High Efficiency & Low Distortion
    ・P1dB: +39 dBm min. over temperature
    ・IM3: -28 dBc @ Pout = +36 dBm
    ・Power Consumption: 79 W

    *   Wide Operating Range  of DC Power Operation
    ・Voltage Range: +18 to +60 VDC


    * Compact Size & Light Weight
    ・Weight: 3.2kg


    * LED Indicator
    * RoHS Compliance

    Model No.

    RF Frequency

    Local Frequency

    IF Frequency

    Output Power @ P1dB

    IF Connector

    Power Supply

    		Port for Voltage Input
    		LED Indicator

    NJT5218N

    NJT5218F

    13.75 to 14.5 GHz
    (Universal Ku-band)

    12.8  GHz

    950 to

    1,700 MHz

    8W Linear (+39 dBm min.)

    N-TYPE

    F-TYPE

    DC Power

    +24/+48 VDC
    (+18 to +60 VDC)

    		Same as IF Connector
    		Equipped

    NJT5218NM

    NJT5218FM

    13.75 to 14.5 GHz
    (Universal Ku-band)

    12.8 GHz

    950 to

    1,700 MHz

    8W Linear (+39 dBm min.)

    N-TYPE


    F-TYPE

    DC Power

    +24/+48 VDC
    (+18 to +60 VDC)

    		MS Connector
    (Separate Port)
    		Equipped

    NJT5118NA

    NJT5118FA


    		 13.75 to 14.5 GHz
    (Universal Ku-band)
    		12.8  GHz
    		950 to

    1,700 MHz    		8W Linear (+39 dBm min.)

    N-TYPE


    F-TYPE

    		AC Power
    Option
    		IF Connector Supplied by AC PSU
    		Equipped



    ITEM

    SPECIFICATIONS

    Output InterfaceWaveguide, WR75 (with Groove)

    Input Interface

    N-type, female (50 ohm)  [N-type IF Connector Model]

    F-type, female (75 ohm) [F-type IF Connector Model]

    Output Power @ 1 db G.C.P.

    +39 dBm min. over temperature

    ACPR-28 dBc typ. @ Pout = +38 dB

    Linear Gain

    65 dB nom., 59 dB min.

    Requirement for External Reference

    [Frequency]  10 MHz (sine-wave)

    [Input Power] -5 to +5 dBm @ Input port


    [Phase Noise]

    -125 dBc/Hz max. @ 100 Hz

    -135 dBc/Hz max. @ 1 kHz

    -140 dBc/Hz max. @ 10 kHz

    L.O. Phase Noise

    -60 dBc/Hz max. @ 100 Hz

    -70 dBc/Hz max. @ 1 kHz

    -80 dBc/Hz max. @ 10 kHz

    -90 dBc/Hz max. @ 100 kHz

    -100 dBc/Hz max. @ 1 MHz

    Receive Band Noise Density
    ​
    		-156 dBm/Hz max. @10.95 to 12.75 GHz, @ Pout <= +39 dBm

    Input V.S.W.R  /  Output V.S.W.R

    2 : 1 max.    /   2 : 1 max.

    Power Requirement

    +18 to +60 VDC Power

    Power Consumption79 W typ., 90 W max.

    Mute

    Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal

    LED IndicatorGREEN: L.O. locked / RED: L.O. unlocked or no 10 MHz reference signal

    Temperature Range (ambient)

    Operating: - -40 to +55 °C

    Storage: -40 to +75 °C

    Waterproof/Dustproof (IP Code)IP 67

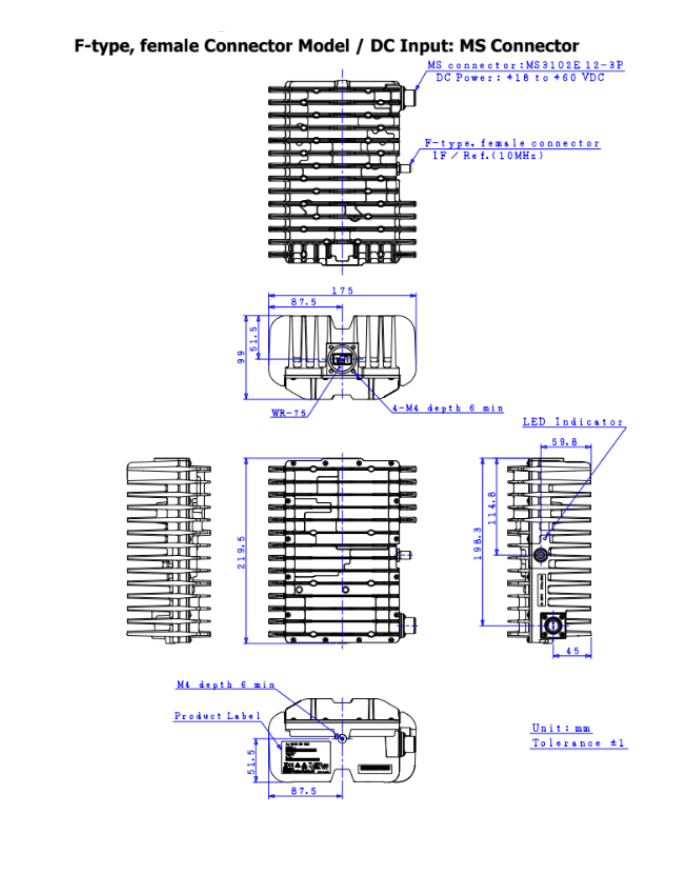

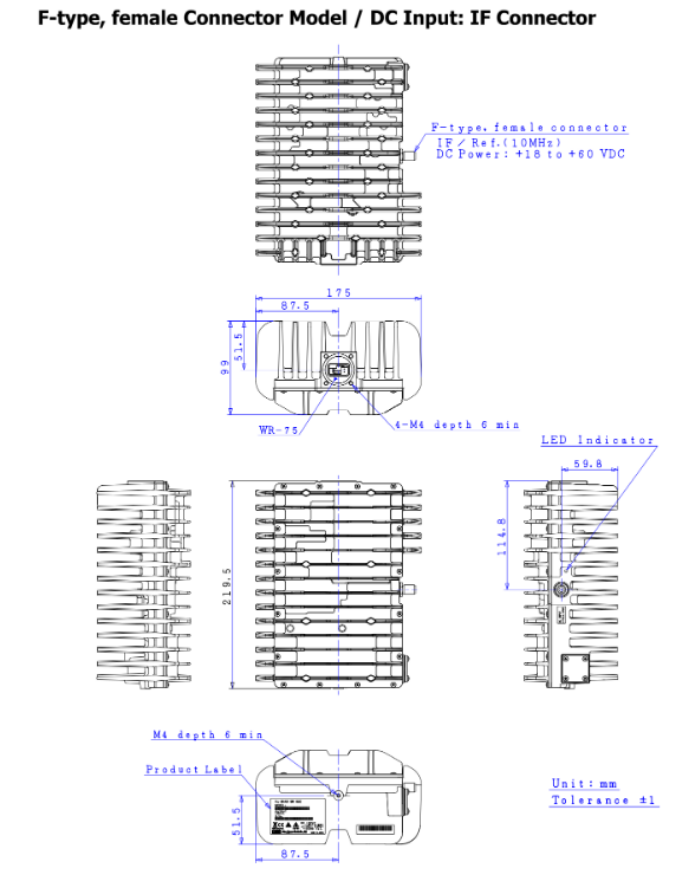

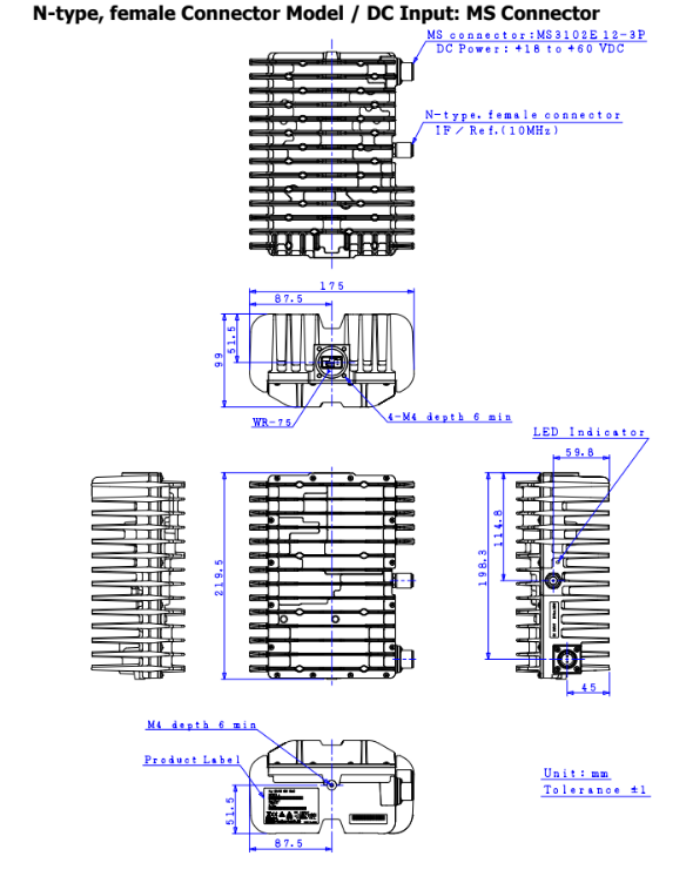

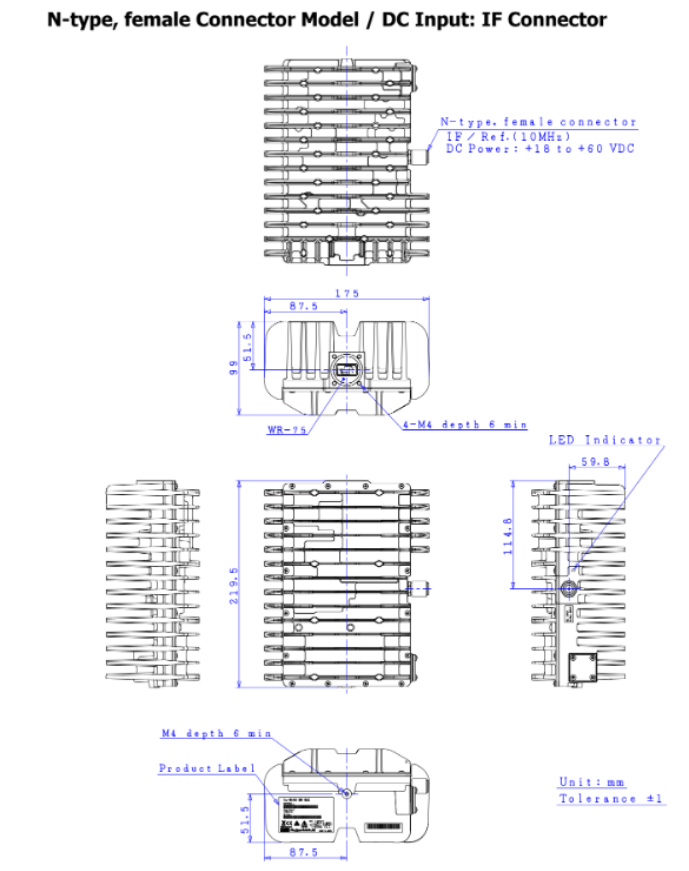

    Dimension & Housing

    219.5 mm (L) x 175 mm (W) x 99 mm (H) [8.64” (L) x 6.89” (W) x 3.90” (H)]

    ( without Interface Connectors and Screws )

    Weight

    3.2 kg [7.0 lbs]
