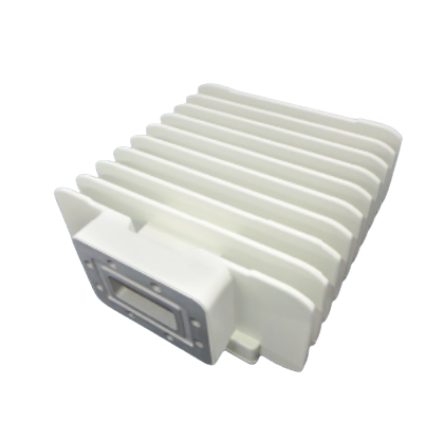

New Japan Radio NJRC 5W C-Band BUC Model No. NJT8105 series

$ 0.27 0.27 USD $ 0.27

1.00 AED

    This combination does not exist.


    Key Features

    * RF Frequency Line-up

    ・ Full C-band: 5.85 to 6.725 GHz
    ・ Standard C-band: 5.85 to 6.425 GHz
    ・ INSAT C-band: 6.725 to 7.025 GHz

    * High-Efficiency Output Power

    ・ P1dB: +37 dBm min. over temp.
    ・ ACPR: -26 dBc typ. @ Pout = +37 dBm
    ・ Power Consumption: 40 W typ.

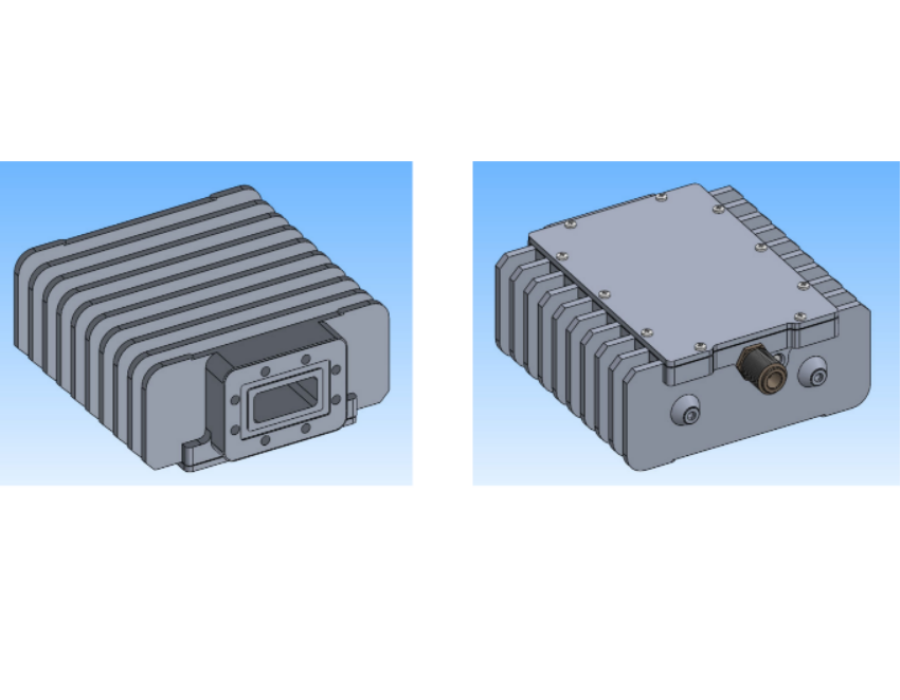

    * Compact Size & Light Weight

    ・ Dimension: 149.1 (L) × 134 (W) × 57 (H) mm
    ・ Weight: 1.37 kg

    * LED Indicator Equipped


    ITEM

    SPECIFICATIONS

    Output Interface Waveguide, CPR137 (with Groove)

    Input Interface

    N-type, female connector, 50 ohms

    F-type, female connector, 75 ohms

    Output Power @ 1 db G.C.P.

    +37.0 dBm min. over temperature

    Linear Gain

    62 dB nom., 56 dB min.

    Gain Variation over frequency

    5 dBp-p max. over Frequency / 2 dBp-p max .over 36 MHz

    Gain Stability over temperature2 dBp-p typ., 5 dBp-p max.
    ACPR-26 dBc typ. @Pout = +37 dBm

    L.O. Phase Noise

    -60 dBc/Hz max. @ 100 Hz

    -70 dBc/Hz max. @ 1 kHz

    -80 dBc/Hz max. @ 10 kHz

    -90 dBc/Hz max. @ 100 kHz

    -100 dBc/Hz max. @ 1 MHz

    Input V.S.W.R  /  Output V.S.W.R

    2 : 1 max.    /    2 : 1 max.

    Power Requirement

    (1) Voltage Range

    (2) Power Consumption

    +12 to +30 V DC Power

    40 W typ., 44 W max. @ Pout = +37 dBm

    33 W typ. @ No IF signal

    2 W max. @ Mute On

    Mute

    Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal.

    Temperature Range (ambient)

    Operating: -40 to +60 °C  /

    Storage: -40 to +75 °C

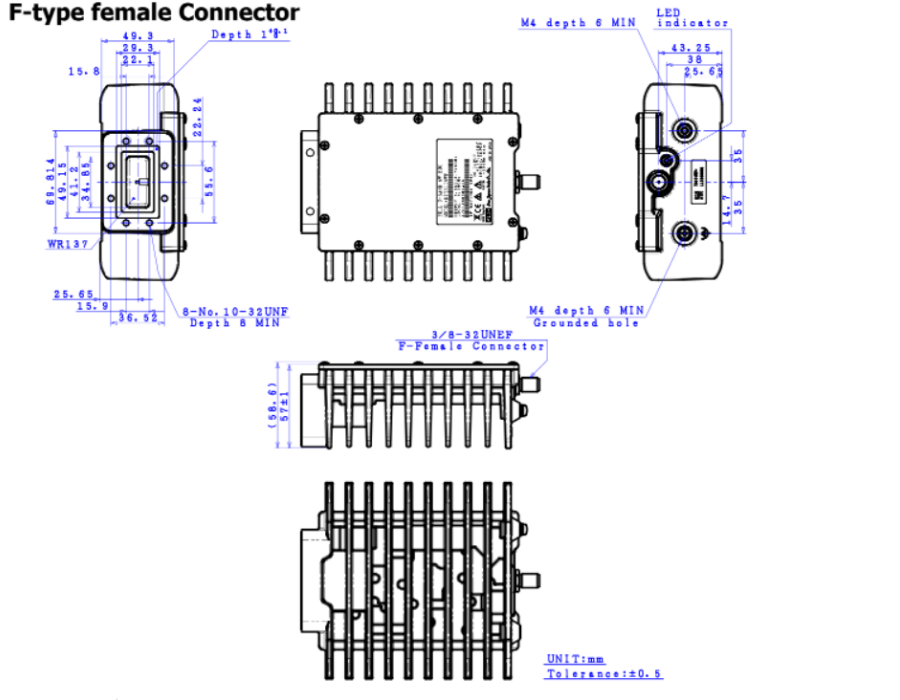

    Dimension & Housing ( without Interface Connectors and screws )

    149.1 (L) x 134 (W) x 57 (H)

    [5.87" (L) x 5.28" (W) x 2.24" (H)]

    Weight

    1.3 kg [3 lbs]


    Model No.

    RF Frequency

    Local Frequency

    IF Frequency

    Output Power @ P1dB

    IF Connector

    Power Supply

    NJT8105N

    NJT8105F

    5.85 to 6.425 GHz (Standard C-band)

    4.90 GHz

    950 to 1,525 MHz

    5W Linear (+37.0dBm min.)

    N-TYPE

    F-TYPE

    +12 to +30 V DC Power

    NJT8105WN

    NJT8105WF

    5.85 to 6.725 GHz (Full C-band)

    ​4.90 GHz

    ​950 to 1,825 MHz

    5W Linear (+37.0dBm min.)

    N-TYPE


    F-TYPE

    +12 to +30 V DC Power

    NJT8105EN

    NJT8105EF

    6.725 to 7.025 GHz (Full C-band)

    5.76 GHz

    965 to 1,265 MHz

    5W Linear (+37.0dBm min.)

    N-TYPE


    F-TYPE

    +12 to +30 V DC Power





    Model No.

    RF Frequency

    Local Frequency

    IF Frequency

    Output Power @ P1dB

    IF Connector

    Power Supply

    NJT8105N

    NJT8105F

    5.85 to 6.425 GHz (Standard C-band)

    4.90 GHz

    950 to 1,525 MHz

    5W Linear (+37.0dBm min.)

    N-TYPE

    F-TYPE

    +12 to +30 V DC Power

    NJT8105WN

    NJT8105WF

    5.85 to 6.725 GHz (Full C-band)

    ​ 4.90 GHz

    ​950 to 1,825 MHz

    5W Linear (+37.0dBm min.)

    N-TYPE


    F-TYPE

    +12 to +30 V DC Power

    NJT8105EN

    NJT8105EF

    6.725 to 7.025 GHz (Full C-band)

    5.76 GHz

    965 to 1,265 MHz

    5W Linear (+37.0dBm min.)

    N-TYPE

    F-TYPE

    +12 to +30 V DC Power
