New Japan Radio NJRC 10W C-Band NJT5762 series

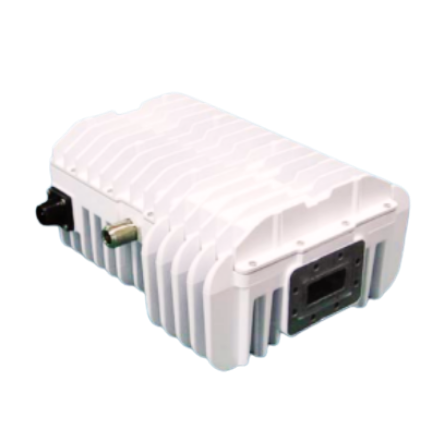

The NJT5762 series BUC provides +40 dBm of highly efficient RF output power over 5.85 to 6.425 (standard C-Band) frequency ranges. This NJRC 10W C-Band BUC offers easy installation and operation, as well as exceptional reliability and RF performance, all at a very cost-effective price point.

The NJT5762 series C-Band BUCs also feature built-in FSK communications for communicating with satellite modems, IDU's and iDirect satellite internet routers. The RF signal of the Monitor and Control is multiplexed onto the IF coaxial cable with the IF signal, 10 MHz references, and DC power between the BUC and the IDU. The M&C implements a command to control BUC functions and to query the BUC for configuration or status information.

$ 0.27 0.27 USD $ 0.27

1.00 AED

    This combination does not exist.


    DOWNLOAD DATASHEET

    Download

    Key Features

    * High Efficiency & Low Distortion

    ・P1dB: +40 dBm min. over temperature
    ・IM3: -28 dBc @ Pout = +37 dBm
    ・Power Consumption: 69 W

    * Compact Size & Light Weight
    ・Weight: 3.2kg

    * AC Power Option

    * LED Indicator

    * RoHS Compliance

    Model No.

    RF Frequency

    Local Frequency

    IF Frequency

    Output Power @ P1dB

    IF Connector

    		Power Supply

    Port for
    Voltage Input

    		LED Indicator

    NJT5762N

    NJT5762F

    5.85 to 6.425 GHz

    (Standard C-band)

    4.90 GHz

    950 to 1,525 MHz

    10W Linear

    (+40 dBm min.)

    N-TYPE

    F-TYPE

    		DC Power+24/+48 VDC

    (+18 to +60 VDC)

    +12 to +30 V DC Power

    		Equipped

    NJT5762NM

    NJT5762FM

    5.85 to 6.425 GHz

    (Standard C-band)

    ​4.90 GHz

    950 to 1,525 MHz



    10W Linear

    (+40 dBm min.)

    N-TYPE


    F-TYPE

    		DC Power+24/+48 VDC

    (+18 to +60 VDC)

    +12 to +30 V DC Power

    		Equipped

    NJT5762NA

    NJT5762FA

    5.85 to 6.425 GHz

    (Standard C-band)

    4.90 GHz

    950 to 1,525 MHz




    10W Linear

     (+40 dBm min.)

    N-TYPE


    F-TYPE

    		AC Power Option

    +12 to +30 V DC Power

    		Equipped


    ITEM

    SPECIFICATIONS

    Output InterfaceWaveguide, CPR137 (with Groove)

    Input Interface

    N-type, female connector, 50 ohms

    F-type, female connector, 75 ohms

    Output Power @ 1 db G.C.P.

    +40 dBm min. over temperature

    Linear Gain

    64 dB nom., 58 dB min.

    IM3-28 dBc typ. @total power = +40dBm - 3dB
    Requirement for External Reference

    [Frequency]  10 MHz (sine-wave)

    [Input Power] -5 to +5 dBm @ Input port


    [Phase Noise]

    -125 dBc/Hz max. @ 100 Hz

    -135 dBc/Hz max. @ 1 kHz

    -140 dBc/Hz max. @ 10 kHz

    L.O. Phase Noise

    -60 dBc/Hz max. @ 100 Hz

    -70 dBc/Hz max. @ 1 kHz

    -80 dBc/Hz max. @ 10 kHz

    -90 dBc/Hz max. @ 100 kHz

    Receive Band Noise Density-87 dBm/4kHz max. @3.625 to 4.200 GHz

    Input V.S.W.R  /  Output V.S.W.R

    2.0 : 1 max.    /    2.0 : 1 max.

    Power Requirement / Consumption

    +24 / +48 VDC (+18 to +60 VDC) / 69 W typ., 75 W max.

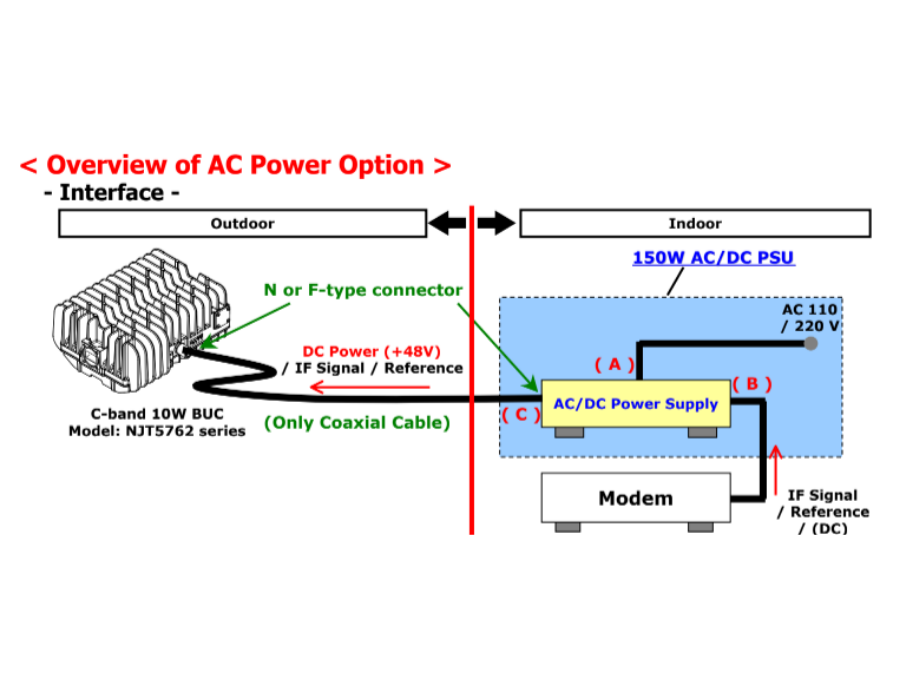

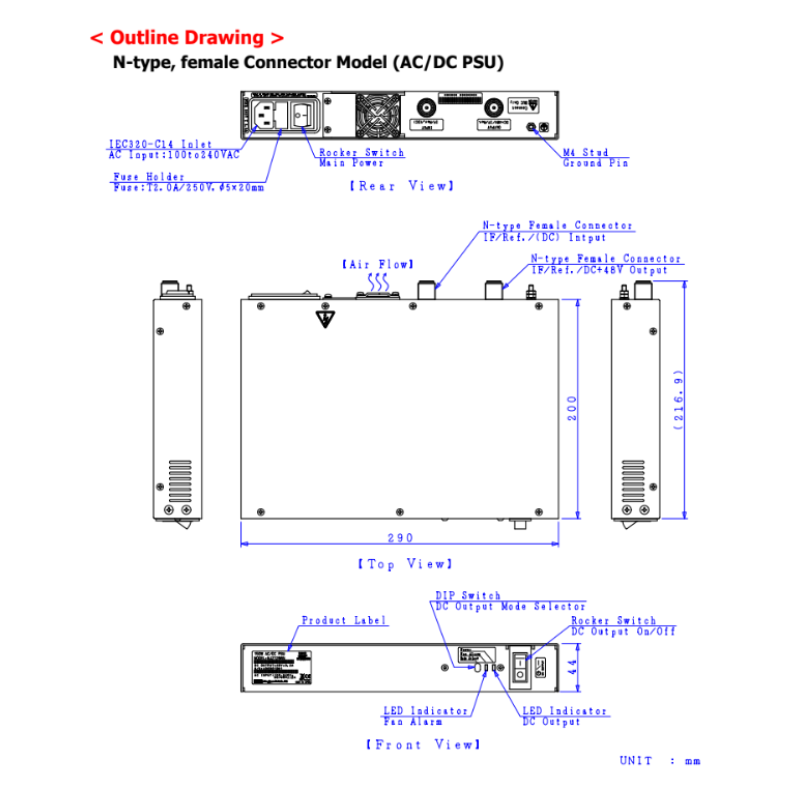

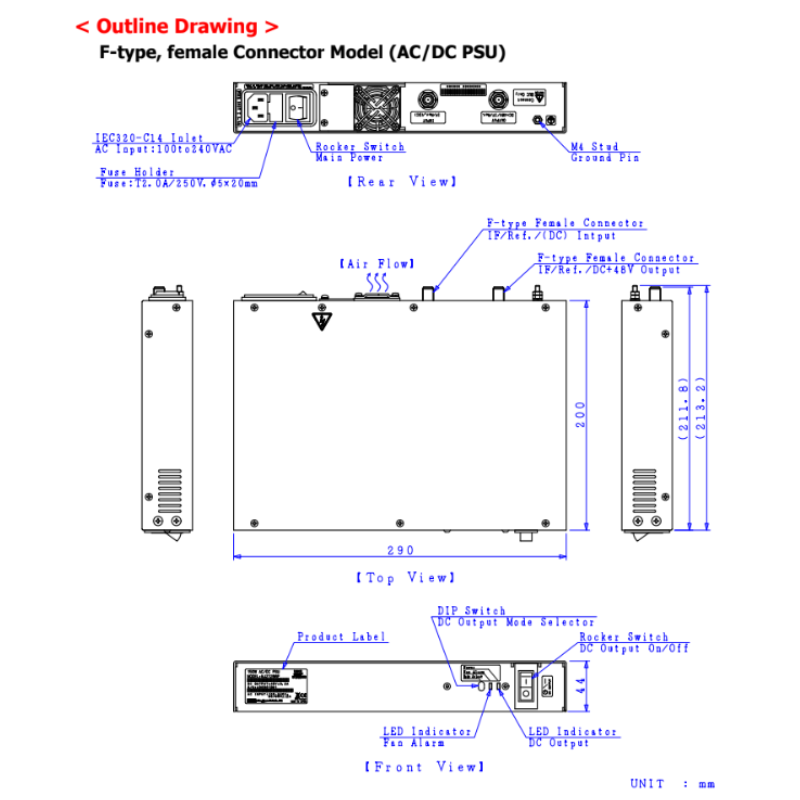

    AC Power Option: 90 to 264 VAC at Indoor AC/DC PSU

    [Model No.: NJT5762NA/62FA]

    Mute

    Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal

    LED IndicatorGREEN: L.O. locked / RED: L.O. unlocked or no 10 MHz reference signal
    Port for Voltage InputSame as IF Connector [Model No.:NJT5762N/62F]

    MS Connector (Separate Port) [Model No.:NJT5762NM/62FM]

    IF Connector supplied by AC/DC PSU via IF Cable [Model No.: NJT5762A/62FA]

    Temperature Range (ambient)

    -40 to +55 °C (operating),  -40 to +75 °C (storage)

    Waterproof/Dustproof (IP Code)IP 67

    Dimension & Housing

    ( without Interface Connectors )

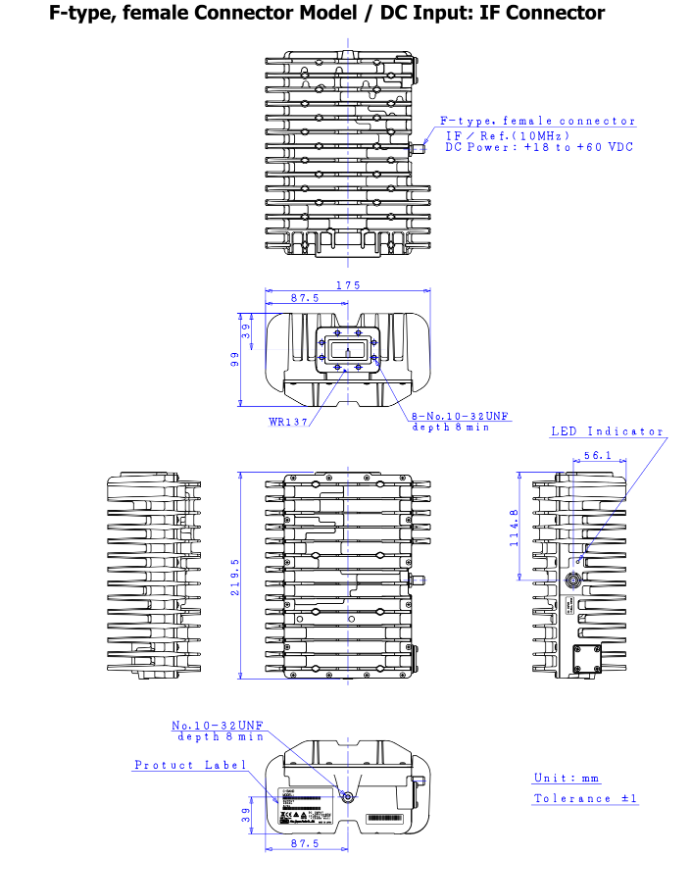

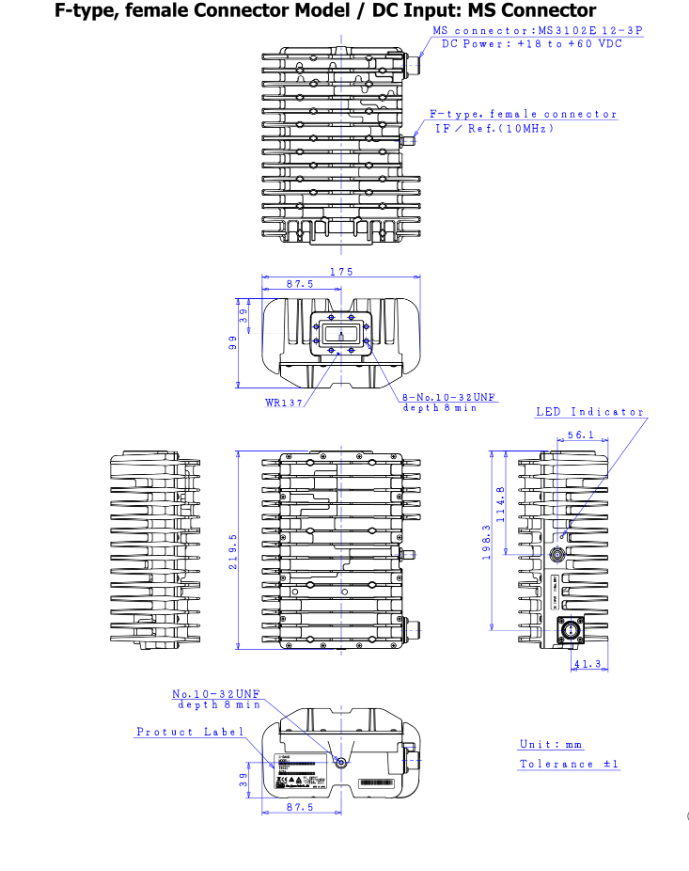

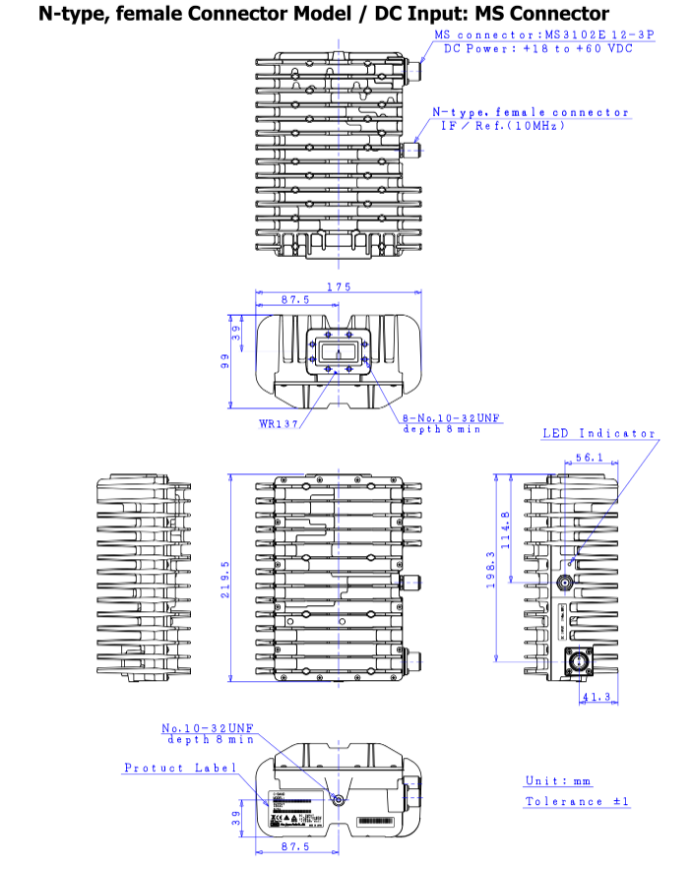

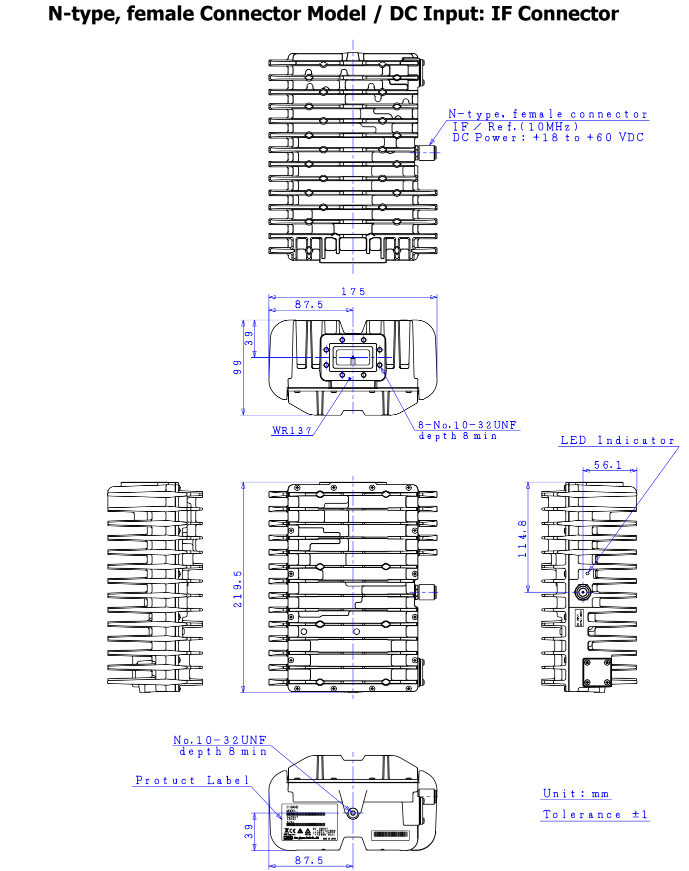

    219.5 mm (L) x 175 mm (W) x 99 mm (H)

    [8.64" (L) x 6.89" (W) x 3.90" (H)]

    Weight

    3.2 kg [7.0 lbs]
