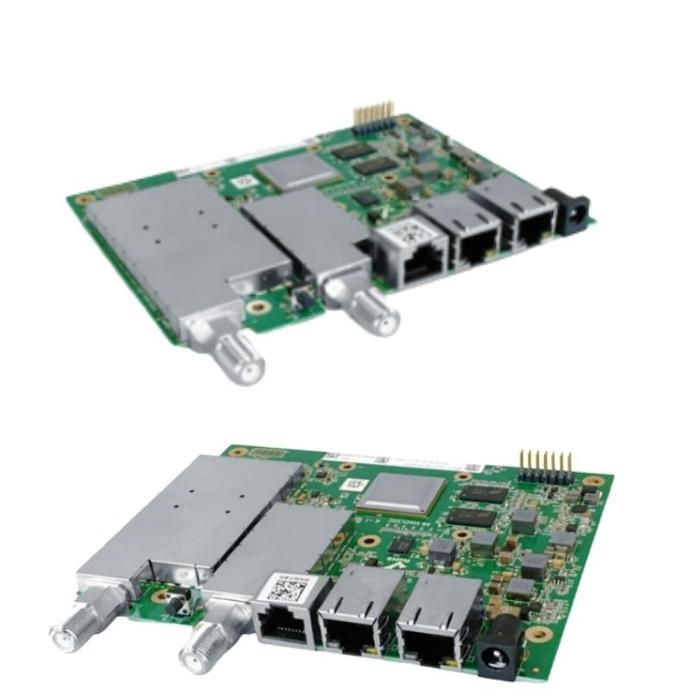

iDirect's DVB-S2/S2X Series iQ 200 Board Satellite Modem

The iQ 200 Modem Board is part of ST Engineering iDirect’s DVB-S2/S2X modem series with a software-defined architecture for maximum flexibility and expansion. The series is compatible with both Evolution® and Velocity® and features high performance and efficiency for fixed and mobility networks so you can effortlessly meet demanding service levels and build out large networks with greater speed and reduced costs.


The iQ 200 modem series is ideal for enterprise, cellular backhaul, land mobile and maritime applications combining high-performance iQ series features with mobility. Designed to integrate into complete terminals the iQ 200 Board combines high-performance iQ series features with OpenAMIP mobility. OpenAMIP is an IP-based protocol that facilitates the exchange of information between an Antenna Controller Unit and a satellite modem to ensure seamless integration. The iQ 200 Board’s licensable features enable the service integrator to provide a terminal that can easily scale by adding more inbound throughput capabilities to the modem.


The iQ 200 Board is also available in a 1RU rackmount chassis.

$ 0.27 0.27 USD $ 0.27

1.00 AED

    This combination does not exist.


    DOWNLOAD DATASHEET

    Download

    Main Features


    • DVB-S2 (up to 45 Msps) / DVB-S2X (up to 100 Msps) outbound
    • Supports a full range of DVB-S2X MODCODS up to 256APSK
    • Adaptive TDMA up to 15 Msps, 16QAM
    • Ideal for both fixed and mobility applications
    • Security features with 256-bit AES Link Encryption (optional)
    • 10 and 50 MHz reference for BUC compatibility
    • OpenAMIP compatibility for ease of integration
    • Layer 2 and Layer 3 optimized


    Markets

    Maritime
    Enterprise
    SME
    Broadband
    Land Mobility

    Network Configuration

    Network TopologyRx
    		 Rx Tx

    		DVB-S2X4*/ACM
    		DVB-S2*/ACM
    		 Adaptive TDMA
    Modulation
    		QPSK, 8PSK, 16APSK, 32APSK,
    64APSK, 128APSK, 256 APSK
    		QPSK, 8PSK,
    16APSK, 32APSK
    		SS-BPSK, BPSK, QPSK, 8PSK,
    16QAM*
    FEC Rates
    		Refer to the LBA guide
    		LDPC 1/4 - 8/92D 16-State 1/2 - 6/7
    Symbol Rates
    		5 Msps to 100 Msps
    		1 Msps to 45 Msps128 ksps to 15 Msps*
    Spread Spectrum*

    		SF: 2,4,8; Up to 7.5 Mcps

    *Feature is release and platform dependent Please note that the integrator is responsible for all certs. at the terminal level.



    Modem Interfaces

    Tx Interface

    Connector
    		F-Type 75 Ohm
    Frequency range L-band
    		950-2400 MHz
    Tx level
    		Pmax of +0 dBM to Pmin of -35dBM
    BUC power supply
    		+24V, 2.3A(max) @ connector Tx out
    BUC reference
    		10/50 MHz
    Rx Interface
    Connector
    		F-Type 75 Ohm
    Frequency
    		950-2150 MHz
    LNB power supply
    		13/18/21VDC @ 0.5A @ connector Rx in
    LNB LO selection
    		22 kHz on/off

    Data / Management Interface
    LAN: Two 10/100/1000 Mbps Ethernet
    RJ-45: console


    Management

    Protocols Supported

    TCP, UDP, ICMP, DHCP, NAT/PAT, DNS, ROHCv2, RIPv2, IGMPv2,
    IGMPv3, ICMP, IPv4 (IPv6 over L2oS), L3, VRRP

    Security

    256-bit AES Link Encryption (optional)


    Mechanical and Environmental

    Size
    		W 13.7 cm x D 10.5 cm x H 1.8 cm
    (W 5.41 in x D 4.13 in x H 0.71 in)
    Weight
    		0.14 kg (0.3 lbs)

    Refer to the integration guide for thermal design guidelines


    Power Supply

    Input Voltage
    		24V +/- 5%
    Power Consumption ~15 Watts
