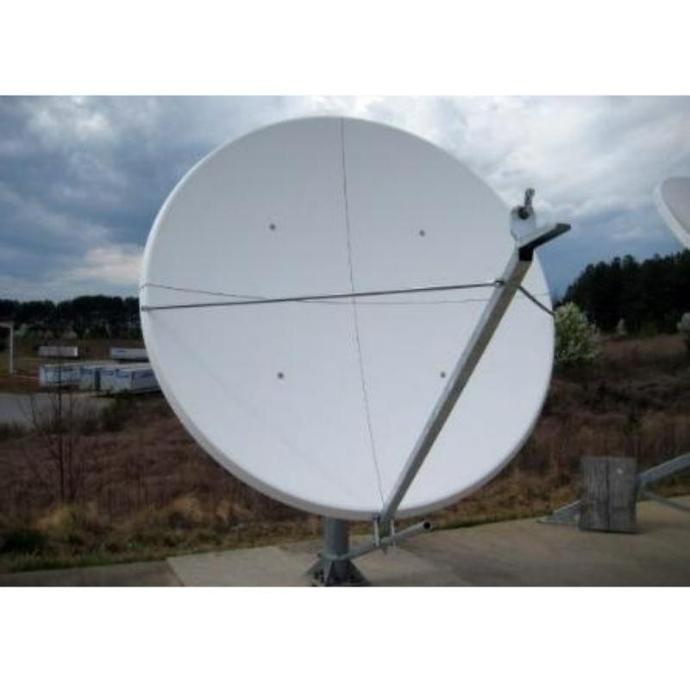

CPI Series 1244 - 2.4 Meter C-Band & Ku-Band Rx/Tx Antenna

$ 0.27 0.27 USD $ 0.27

1.00 AED

    This combination does not exist.


    DOWNLOAD DATASHEET

    Download

    C- Band LinearC-Band CircularKu-Band
    Antenna Size
    		2.4 m (96 in.)
    		2.4 m (96 in.)
    		2.4 m (96 in.)
    Operating Frequency (GHz)

    Receive (Rx)

    Transmit (Tx)


    3.625 - 4.20 GHz

    5.85 - 6.425 GHz


    3.625 - 4.20 GHz

    5.85 - 6.425 GHz


    10.70 - 12.75 GHz

    13.75 - 14.50 GHz
    Antenna Gain at Midband, dBi ( +/- .2dB)

    Receive (Rx)

    Transmit (Tx)


    38.20 dBi

    42.20 dBi


    38.20 dBi

    42.20 dBi


    47.40 dBi

    49.20 dBi
    VSWR1.3:1 Max1.3:1 MaxRx: 1.5:1 Max, Tx:1.3:1 Max
    Pattern Beamwidth (in degrees at midband)

    -3 dB
    -15 dB

    Rx: 2.20° Tx: 1.40°

    Rx: 4.90° Tx: 3.10°

    Rx: 2.20° Tx: 1.40°

    Rx: 4.90° Tx: 3.10°

    Rx: 0.70° Tx: 0.60°

    Rx: 1.60° Tx: 1.40°
    Antenna Noise Temperature

    10° Elevation

    20° Elevation

    30° Elevation

    40° Elevation


    55 K

    47 K

    43 K

    43 K

    51 K

    53 K

    49 K

    49 K


    56 K

    51 K

    48 K

    41 K
    Sidelobe Envelope, Co-Pol (dBi)

    100λ/D   θ   20°

    20° <θ   26.3°

    26.3° <θ   48°

    θ < 48°



    29 - 25 LogdBiθ

    -3.5 dBi

    32 - 25 Log dBiθ

    -10 dBi (averaged)


    29 - 25 LogdBiθ

    -3.5 dBi

    32 - 25 Log dBiθ

    -10 dBi (averaged)


    29 - 25 LogdBiθ

    -3.5 dBi

    32 - 25 Log dBiθ

    -10 dBi (averaged)
    Power Handling1 kW1 kW100 W


    Reflector MaterialGlass Fiber Reinforces Polyester SMC
    Antenna OpticsPrime Focus, Offset Feed, Four-piece
    Mast Pipe Size6” Sch 40 Pipe (6.63” OD) 16.83 cm
    Elevation Adjustment Range5° - 90° Continuous Fine Adjust
    Azimuth Adjustment Range±30° Fine Adjust, 360° Continuous

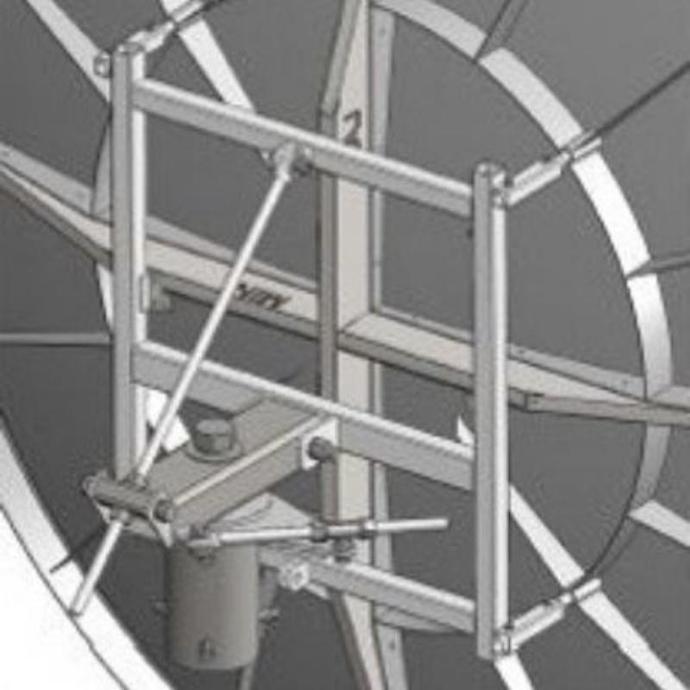

    Mount TypeElevation over Azimuth
    Shipping Specifications

    C-Band Linear

    C-Band Circular

    Ku-Band

    640 lbs. (290.3 kg.)

    660 lbs. (300 kg.)

    630 lbs. (286 kg.)


    Wind Loading

    Operational

    Survival


    50mph (80 km/h)

    125 mph (201 km/h)
    Temperature

    Operational


    -40° to 140° F (-40° to 60° C)
    Rain

    Operational


    1/2” (13 mm)/hr
    Ice

    Operational

    --------------
    Atmospheric ConditionsSalt, Pollutants and Contaminants as Encountered in Coastal and Industrial Areas
    Relative Humidity0 to 100% with Condensation
    Solar Radiation360 BTU/h/ft2
