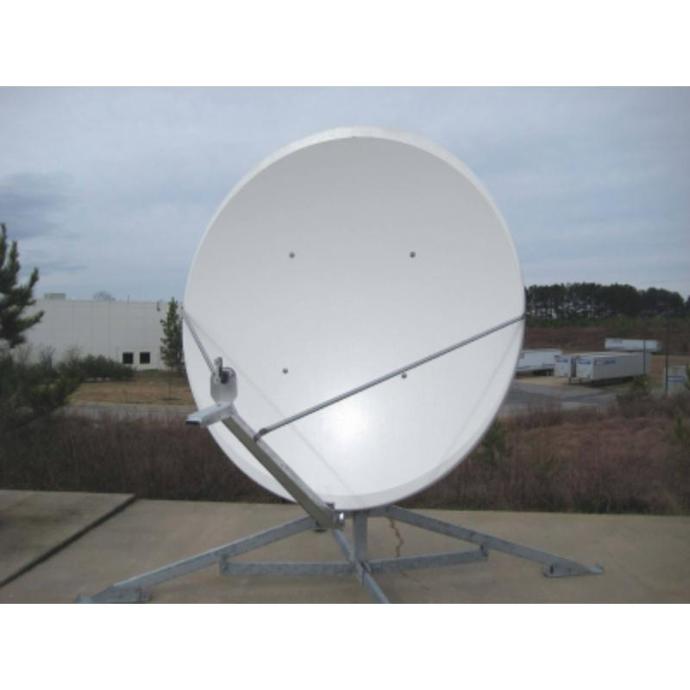

CPI Series 1183 - 1.8 Meter C-Band & Ku-Band Rx/Tx Antenna

$ 0.27 0.27 USD $ 0.27

1.00 AED

    This combination does not exist.


    DOWNLOAD DATASHEET

    Download

    Key Features


    * Low Noise Figure
        ・Noise Figure: 0.8 dB

    * Low DC Current Drain
        ・ DC Current Drain: 250 mA

    *  Small Size & Light Weight
        ・ Weight: 260 g

    * ROHS Compliance




    		C-Band LinearC-Band CircularKu-Band Linear
    Antenna Size
    		1.8 m (71 in.)
    		1.8 m (71 in.)
    		1.8 m (71 in.)
    Operating Frequency (GHz)

    Receive (Rx)

    Transmit (Tx)

    3.65 - 4.20 GHz

    5.85 - 6.425 GHz


    3.65 - 4.20 GHz

    5.85 - 6.425 GHz


    10.70 - 12.75 GHz

    13.75 - 14.50 GHz
    Midband Gain ( +/- .2dB)

    Receive (Rx)

    Transmit (Tx)

    35.30 dBi

    39.30 dBi


    35.30 dBi

    39.30 dBi


    44.8 dBi

    46.8 dBi
    Antenna Noise Temperature

    10° Elevation

    20° Elevation

    30° Elevation

    40° Elevation

    45 K

    41 K

    41 K

    40 K

    45 K

    41 K

    41 K

    40 K


    69 K

    64 K

    63 K

    62 K
    Sidelobe Envelope, Co-Pol (dBi)

    100λ/D   θ   20°

    20° <θ   26.3°

    26.3° <θ   48°

    48° < θ

    29 - 25 LogdBiθ

    -3.5 dBi

    32 - 25 Log dBiθ

    -10 dBi (averaged)


    29 - 25 LogdBiθ

    -3.5 dBi

    32 - 25 Log dBiθ

    -10 dBi (averaged)


    29 - 25 LogdBiθ

    -3.5 dBi

    32 - 25 Log dBiθ

    -10 dBi (averaged)
    Cross-Pol Isolation (dB)

    Axis

    With 1.o dB Bandwidth

    30 dB

    26 dB

    17.7 dB Tx 15.5 dB Rx

    17.7 dB Tx 15.5 dB Rx

    30 dB

    26dB
    VSWR
    		1.3:1 Max
    		1.3:1 Max
    		Tx: 1.3:1 Max Rx: 1.5:1 Max
    Power Handling1 kW1 kW100 W



    Reflector MaterialGlass fiber reinforced polyester SMC
    Antenna OpticsPrime Focus, One-Piece, Offset Feed
    Mount TypeElevation over Azimuth
    Mast Pipe Size3.5” SCH 40 Pipe (4.0” OD) 10.16 cm.
    Elevation Adjustment Range5° to 90°, Continuous Fine Adjustment
    Azimuth Adjustment Range360° Continuous
    Shipping Specifications (Approx. Net Weight)

    C-Band Linear

    C-Band Circular

    Ku-Band Linear

    180 lbs. (82 kg.)

    185 lbs. (84 kg.)

    170 lbs. (78 kg.)



    Wind Loading

    Operational

    Survival

    65 mph (104 km/h) - 0.5 dB Loss @ 14.25 GHz

    90 mph (144 km/h) - No Repoint Required
    Temperature

    Operational


    -40° to 140° F (-40° to 60° C)
    Rain

    Operational


    1/2” (13 mm)/hr
    Ice

    Operational


    ------
    Atmospheric ConditionsSalt, Pollutants, and Contaminants as Encountered in Coastal and Industrial Areas
    Relative Humidity0 to 100% with Condensation
    Solar Radiation360 BTU/h/ft2
