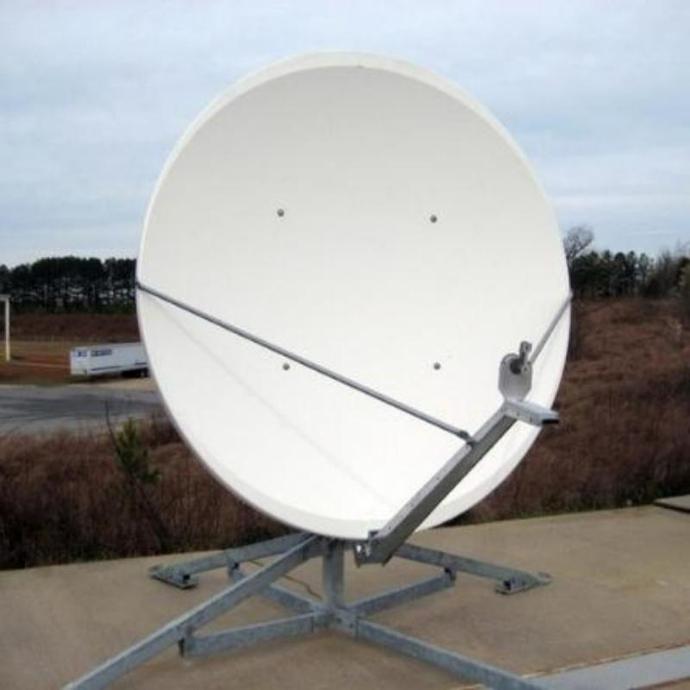

CPI Series 1182 - 1.8 Meter C-Band Antenna - Receive Transmit

$ 0.27 0.27 USD $ 0.27

1.00 AED

    This combination does not exist.


    DOWNLOAD DATASHEET

    Download


    		C-Band Linear PolarityC-Band Circular Polarity
    Antenna Size
    		1.8 m (71 in.)
    		1.8 m (71 in.)
    Operating Frequency (GHz)

    Receive (Rx)

    Transmit (Tx)


    3.400 - 4.200 GHz

    5.850 - 6.725 GHz


    3.625 - 4.200 GHz

    5.850 - 6.425 GHz
    Midband Gain ( +/- .3dB)

    Receive (Rx)

    Transmit (Tx)


    35.4 dBi

    39.6 dBi


    35.5 dBi

    39.5 dBi
    3 dB Beam Width

    Receive (Rx)

    Transmit (Tx)

    3.0°

    1.9°


    3.0°

    1.9°
    Sidelobe Envelope, Co-Pol (dBi)

    100λ / D < Θ ≤ 20°

    20° < Θ ≤ 26.3°

    26.3° < Θ ≤ 48°

    48° < Θ  < 180°



    29 - 25 Log Θ dBi

    -3.5 dBi

    32 - 25 Log Θ dBi

    -10 dBi (Typical)

    29 - 25 Log Θ dBi

    -3.5 dBi

    32 - 25 Log Θ dBi

    -10 dBi (Typical)
    Antenna Noise Temperature

    10° Elevation

    20° Elevation

    30° Elevation

    56K

    49 K

    45 K


    58 K

    53K

    46 K
    Cross-Pol Isolation

    Receive (Rx)

    Transmit (Tx)

    > 30 dB (On Axis)

    15.3 dB Min (AR = 3.0 dB)

    17.5 dB Min (AR = 2.3 dB)
    VSWR
    		1.4:1 max
    		1.3:1 Max
    Feed Interface

    Receive (Rx)

    Transmit (Tx)


    CPR 229G

    CPR 137G


    CPR 229G

    CPR 137G



    Reflector MaterialOne Piece Glass Fiber Reinforced Polyester SMC
    Antenna OpticsPrime Focus, Offset, 0.6 F/D
    Mount TypeElevation over Azimuth
    Mast Pipe Size3-1/2” SCH 40 Pipe (4.00” OD) 10.16 cm.
    Elevation Adjustment Range10° to 80° Continuous Fine Adjustment
    Azimuth Adjustment Range360° Continuous, +/- 10° Fine Adjustment



    Wind Loading

    Operational


    Survival


    50 mph (80 km/h)


    125 mph (201 km/h))
    Temperature

    Operational

    Survival


    -40° to 140° F (-40° to 60° C)

    -50° to 160° F (-46° to 71° C)
    Rain

    Operational


    1/2 inch/h
    Ice

    Survival

    1/2” radial
    Atmospheric ConditionsSalt, Pollutants and Contaminants as Encountered in Coastal and
    Industrial Areas
    Solar Radiation360 BTU/h/ft2
