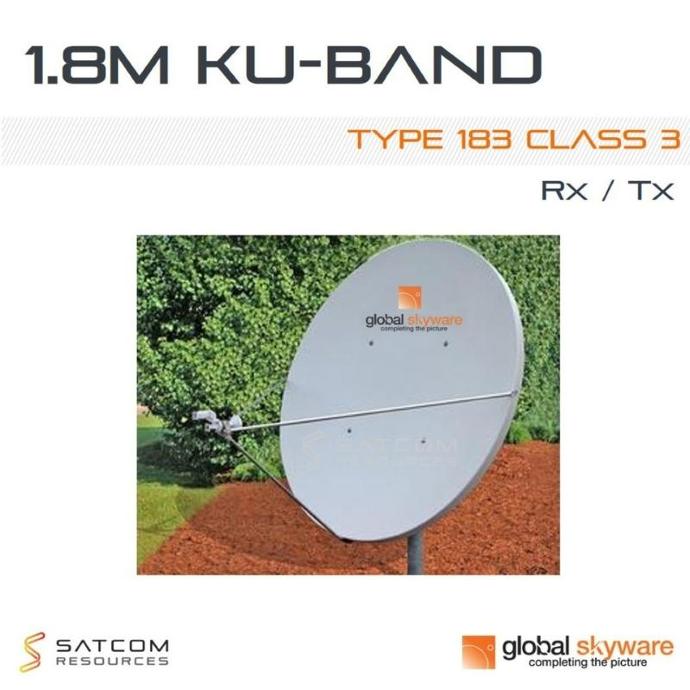

Skyware Global Type 183 - 1.8 Meter Ku-Band Rx/Tx Class III Antenna System

The Skyware Global Type 183 - 1.8 Meter Ku-Band Class III Rx/Tx Antenna System is a rugged commercial grade product suitable for demanding applications. The reflector is thermoset-molded for strength and surface accuracy. Molded into the rear of the reflector is a network of support ribs that strengthens the antenna and helps sustain the critical parabolic shape necessary for transmit performance.

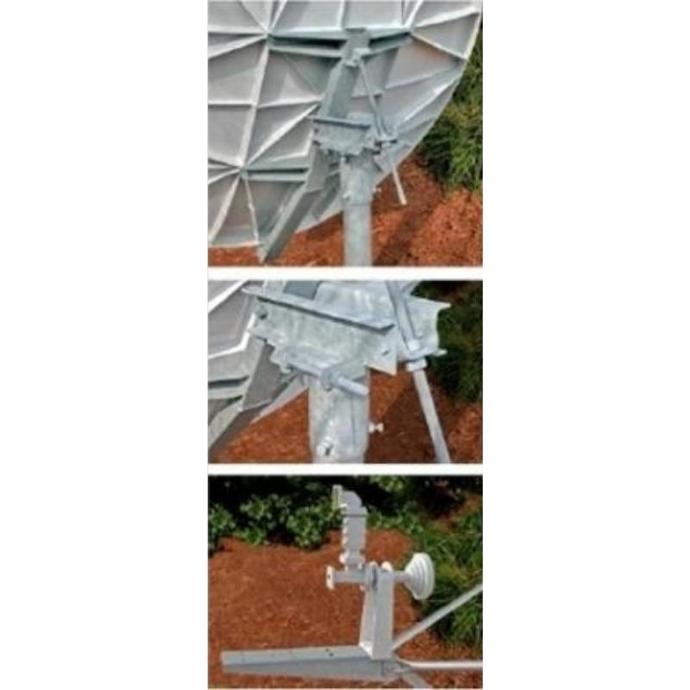

The Az/El mount is constructed from heavy-gauge steel to provide rigid support to the reflector and feed support arm. Heavy-duty lockdown bolts secure the mount to any 114 mm (4.50”) O.D. mast and prevent slippage in high winds.

Hot-dip galvanizing is standard on this model for maximum environmental protection. A marinised version of this antenna is also available, making it suitable for on-shore and offshore marine environments.

Global Skyware designs and manufactures the antenna solutions that enable the world’s leading communications equipment companies to deliver data via satellite. They offer solutions for Very Small Aperture Terminal (Data over Satellite (DOS)/VSAT), Satellite Broadband or direct-to-home TV connectivity.

1.00 AED 1.0 AED 1.00 AED

1.00 AED

    This combination does not exist.


    DOWNLOAD DATASHEET

    Key Features

    • All materials comply with EU directive No. 2011/65/EC (RoHS).
    • One-piece precision offset thermoset-molded reflector.
    • Heavy-duty galvanized Az/El mount.
    • Fine Azimuth and elevation adjustments.
    • HD Galvanized support arm and alignment struts Marinized version has all galvanized steel components finished with 2-part epoxy paint.
    • Factory pre-assembled mount.
    • Plated hardware for maximum corrosion resistance. The optional marinized version uses marine-grade AISI 316 stainless steel hardware throughout.
    • Includes Ku-band linear cross-polarized Rx/Tx feed assembly.
    • Heavy-duty Class III mount for 11 kg (25 lb) RF electronics (LNB & BUC)
