New Japan Radio NJRC Universal Ku-Band 2LO PLL LNB (Switchable Local) - Internal Reference (±3ppm) Model No. NJR2841S, NJR2842S, & NJR2843S series

The NJRC NJR2841S Universal Ku-Band 2 L.O. PLL LNB provide full coverage of Ku Band by utilizing two local oscillators and a mechanical switch to switch between them. The NJRC NJR2841S Universal Ku-Band 2 L.O. PLL LNB provides an input frequency range of 10.7-12.75GHz with +/-10kHz of local oscillator stability.

This product is no longer available.


DOWNLOAD DATASHEET

Key Features


* Switchable Local
・Local Frequency: 9.75 / 10.6 GHz


* Full Ku-band Coverage

・ RF Frequency: 10.70 – 12.75 GHz
     (Low Band) 10.70 – 11.70 GHz
     (High Band) 11.70 – 12.75 GHz

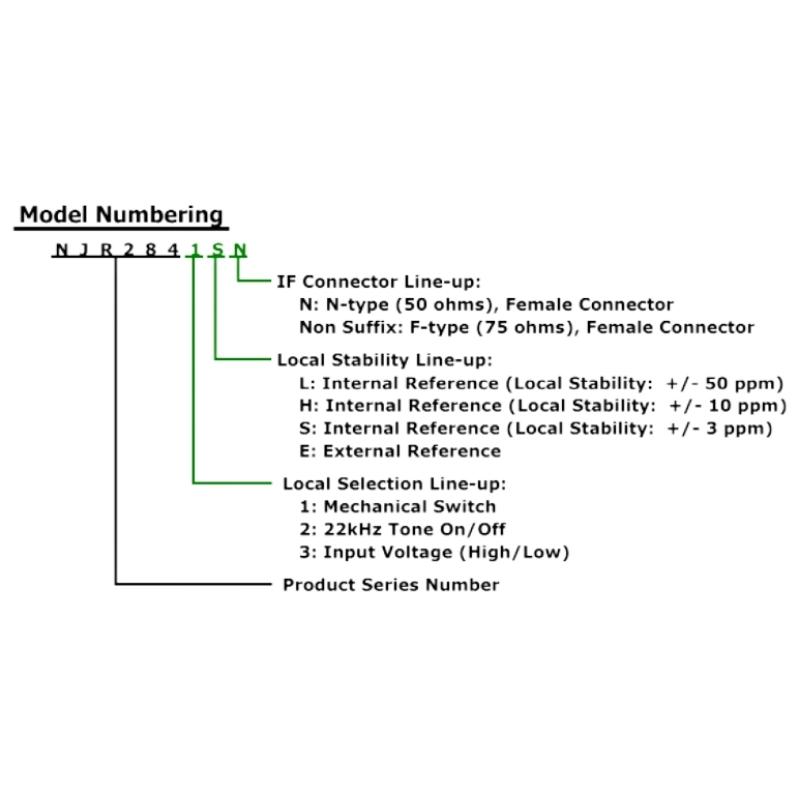

* Local Switching Line-up
   Local Frequency Selected by
    ・ Mechanical Switch: NJR2841 series

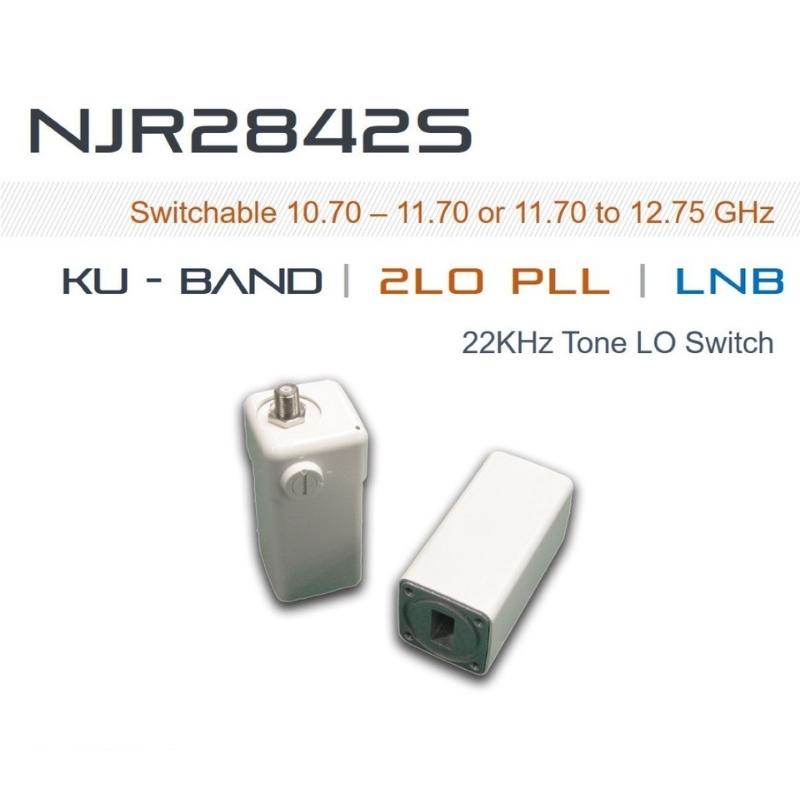

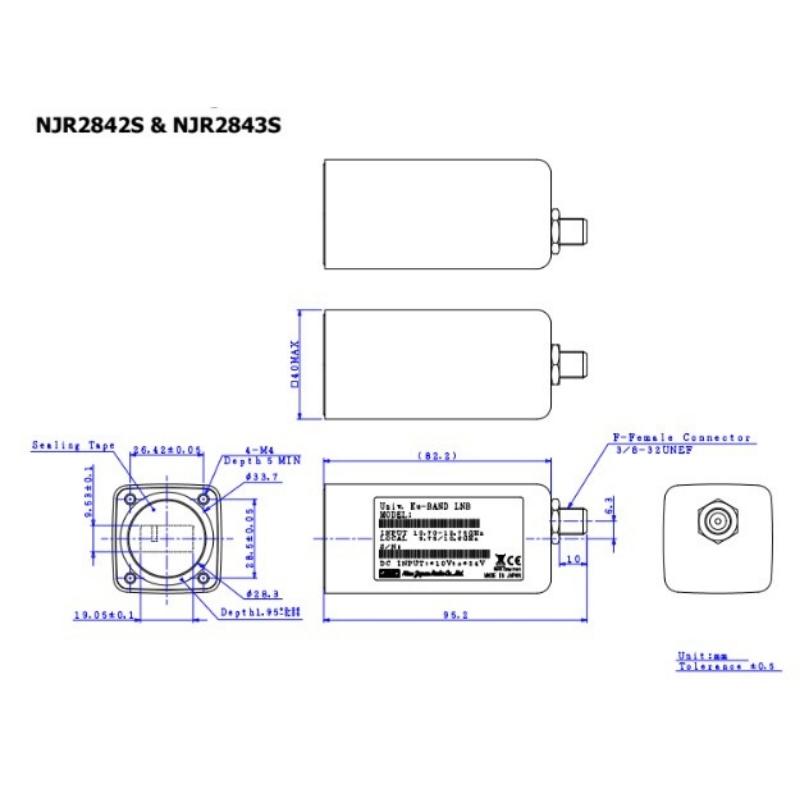

    ・ 22kHz Tone On/Off: NJR2842 series
    ・ Input Voltage (High/Low): NJR2843 series


* Small Size & Light Weight

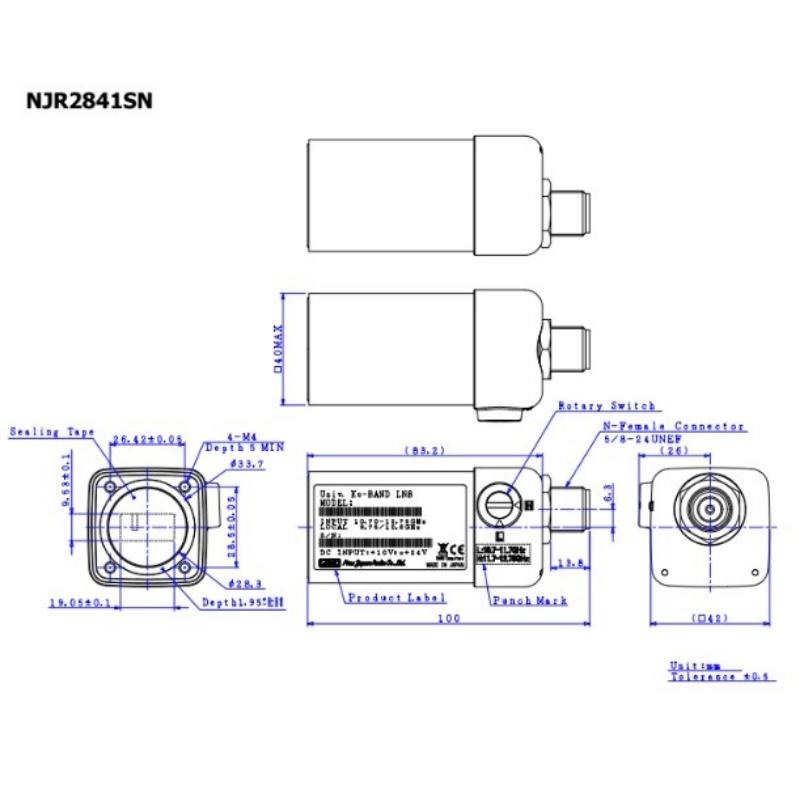

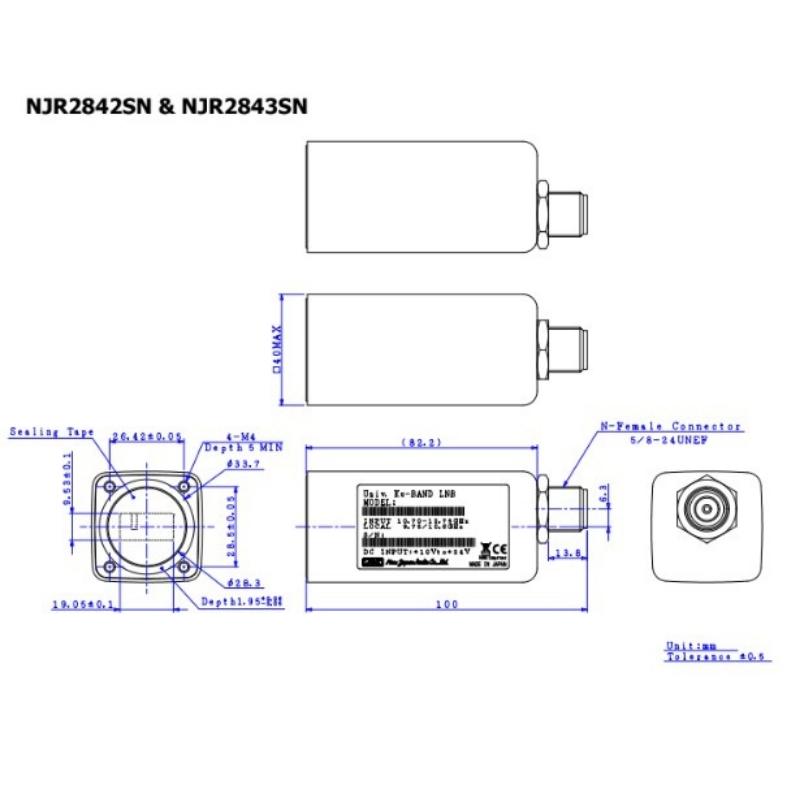

    ・ Weight: 240 g (N-type Connector Model)

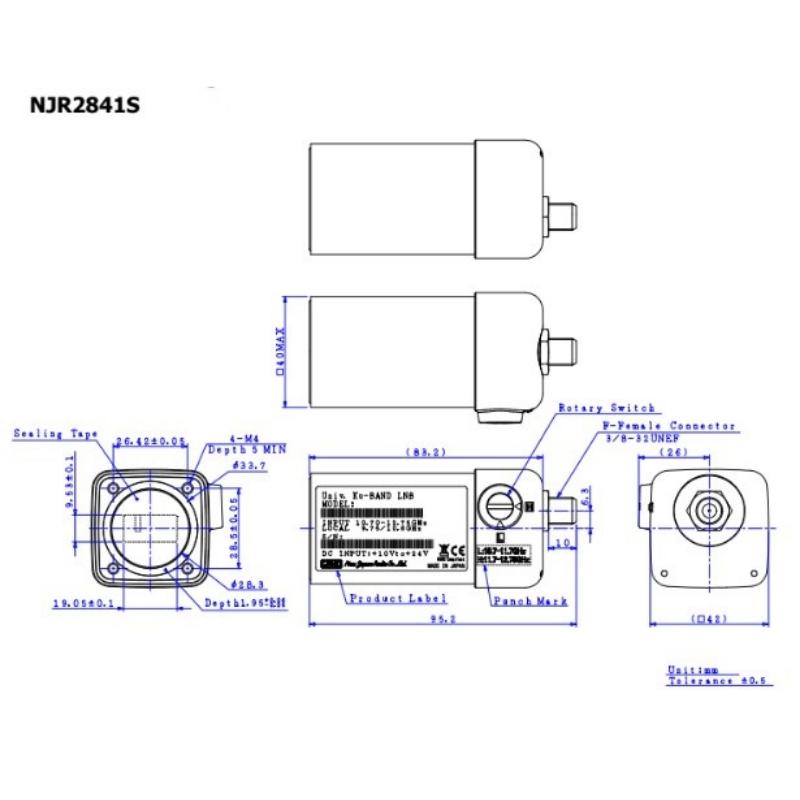

    ・ Weight: 210 g (F-type Connector Model)


* RoHS Compliance
