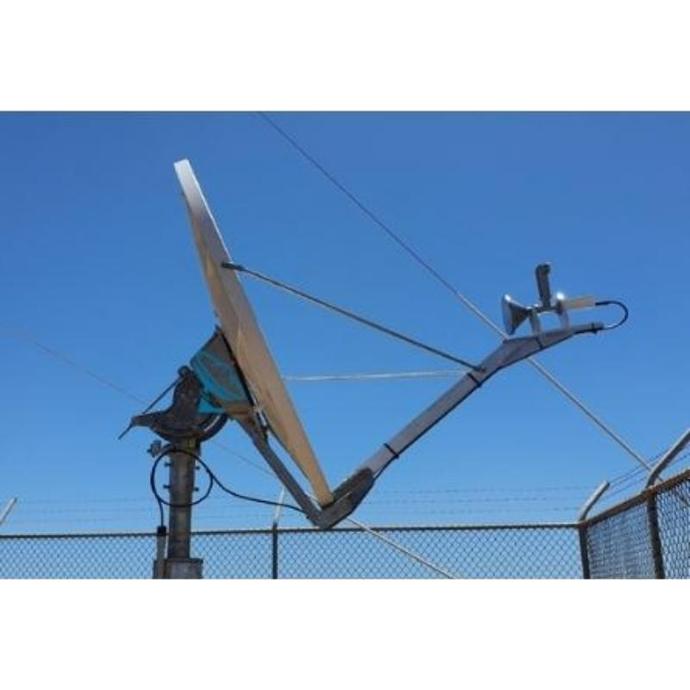

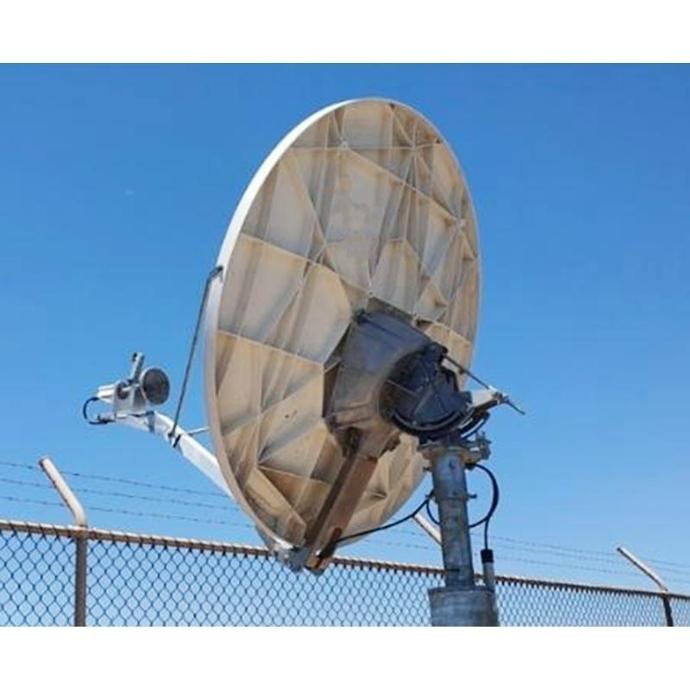

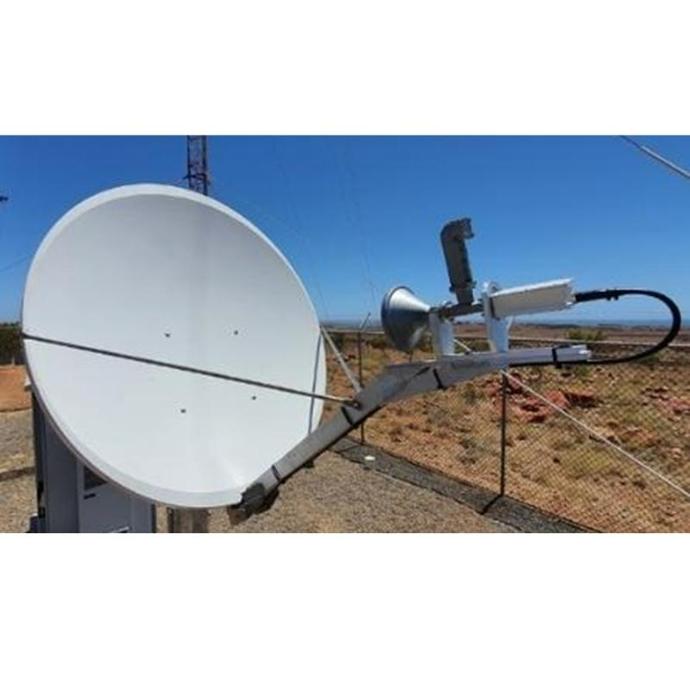

CPI Series 2120 - 1.2 Meter Ku-Band Rx/Tx High Wind Antenna

The 1.2M High-Wind Ku-Band TX RX VSAT Transmit Receive Antennas feature corrosion-resistant Chromated Aluminum finish and heavy-duty galvanized steel mounts that deliver excellent pointing accuracy.

CPI Satcom and Antenna Technologies' products encompass the design, development, and manufacture of microwave and satellite communication VSAT antennas for domestic and international applications. CPI SAT provides high-quality, cost-effective antennas for both the two-way Very Small Aperture Terminal (VSAT) marketplace and receive-only applications. Additional products include unique special purpose antennas for such customers as NASA and defense contractors.

$ 0.27 0.27 USD $ 0.27

1.00 AED

    This combination does not exist.


    DOWNLOAD DATASHEET

    Download


    Antenna Size1.2 m (47.00 in.)

    Operating Frequency (GHz)

    Receive (Rx)

    Transmit (Tx)



    10.70 - 12.75 GHz

    13.75 - 14.50 GHz

    Midband Gain ( +/- .2dB)

    Receive (Rx)

    Transmit (Tx)



    41.4 dBi

    43.3 dBi

    Antenna Noise Temperature

    20° Elevation

    30° Elevation



    57 K

    56 K

    Sidelobe Envelope, Co-Pol (dBi)

    100λ/D  θ   20°

    20° <θ   26.3°

    26.3° <θ   48°

    θ > 48°



    29 - 25 LogdBiθ

    -3.5 dBi

    32 - 25 Log dBiθ

    -10 dBi (averaged)

    VSWR

    Tx: 1.3:1 Max Tx: 1.5:1 Max



    Reflector MaterialGlass Fiber Reinforces Polyester SMC
    Antenna OpticsSingle Piece Offset, Prime Focus

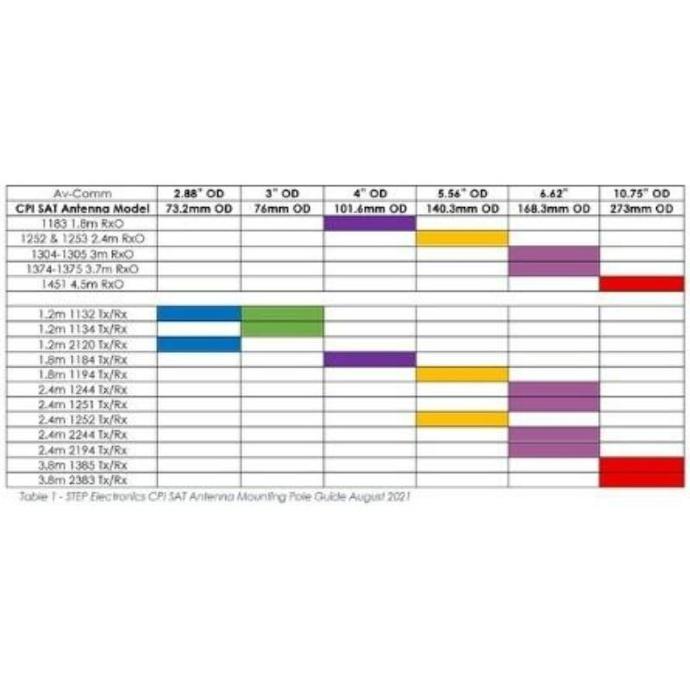

    Mast Pipe Size2.50” Sch 40 Pipe (2.88” OD) 73.2 mm (72mm min., 74mm max.)
    Elevation Adjustment Range5° - 90° Continuous Fine Adjust
    Azimuth Adjustment Range360° Cont. Coarse Adj., ±15° Fine Adjust
    Polarization Adjustment Range±90° Continuous Coarse Adjust
    Maximum Transmitter Weight12 lbs.
    Feed Support TailpieceAvailable as needed
    Shipping Specifications90 lbs. (41 kg.)



    Wind Loading

    Operational

    Survival

    Survival (no perm. damage)

    Survival (no break)


    65 mph (104 km/h) - 0.5 dB Loss @ 14.25 GHz

    90 mph (144 km/h) - No Repoint Required

    125 mph (201 km/h) - No Permanent Damage

    150 mph (240 km/h) - No Breakaway

    Temperature

    Operational

    Survival



    -40° to 140° F (-40° to 60° C)

    -50° to 160° F (-46° to 71° C)

    Rain

    Operational

    Survival



    1/2"/hr

    2"/hr

    Ice

    Operational

    Survival



    ------

    1/2" radial

    Atmospheric ConditionsSalt, Pollutants and Contaminants as Encountered in Coastal and Industrial Areas
    Solar Radiation360 BTU/h/ft2
    ​ ​ ​
