| C-Band | Ku-Band |

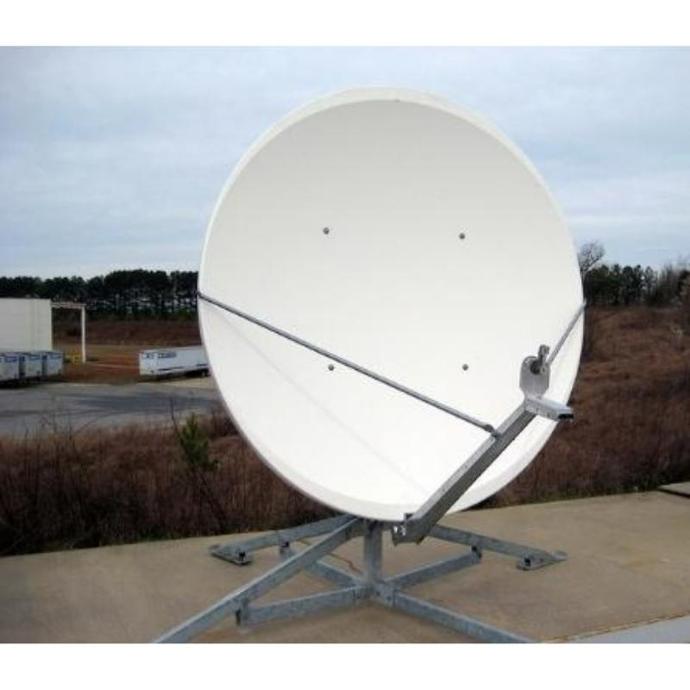

Antenna Size | 1.8 m (71 in.) | 1.8 m (71 in.)
|
Operating Frequency (GHz)
Receive (Rx)
Transmit (Tx)
|
3.625 - 4.20 GHz
5.85 - 6.425 GHz
|
10.95 - 12.75 GHz
13.75 - 14.50 GHz
|
Midband Gain ( +/- .2dB)
Receive (Rx)
Transmit (Tx)
|
35.5 dBi
39.5 dBi
|
45.20 dBi
46.70 dBi
|
Antenna Noise Temperature
20° Elevation
30° Elevation
| Linear
49 K
37 K
| Circular
23 K
21 K
|
|
38 K
35 K
|
Sidelobe Envelope, Co-Pol (dBi)
100λ/D θ 20°
20° <θ 26.3°
26.3° <θ 48°
θ > 48°
| Linear
29 - 25 LogdBiθ
-3.5 dBi
32 - 25 Log dBiθ
-10 dBi (averaged)
| Circular
29 - 25 LogdBiθ
-3.5 dBi
32 - 25 Log dBiθ
-10 dBi (averaged)
|
|
29 - 25 LogdBiθ
-3.5 dBi
32 - 25 Log dBiθ
-10 dBi (averaged)
|
Cross-Pol Isolation
With B.P.E.
Any Angle off Axis |
-26 dB Max
-23 dB Max |
-30 dB Max
-25 dB Max |
VSWR | 1.3:1 Max
| Tx: 1.3:1 Max Rx: 1.5:1 Max
|
Axial Ratio (Circular)
Receive (Rx)
Transmit (Tx)
|
1.4 VAR (2.95 dB)
1.3 VAR (2.28 dB)
|
|
Midband Gain ( +/- .2dB)
Receive (Rx)
Transmit (Tx)
|
CPR 229 F
CPR137 or Type N
|
Available in a variety of designs
Available in a variety of designs |
